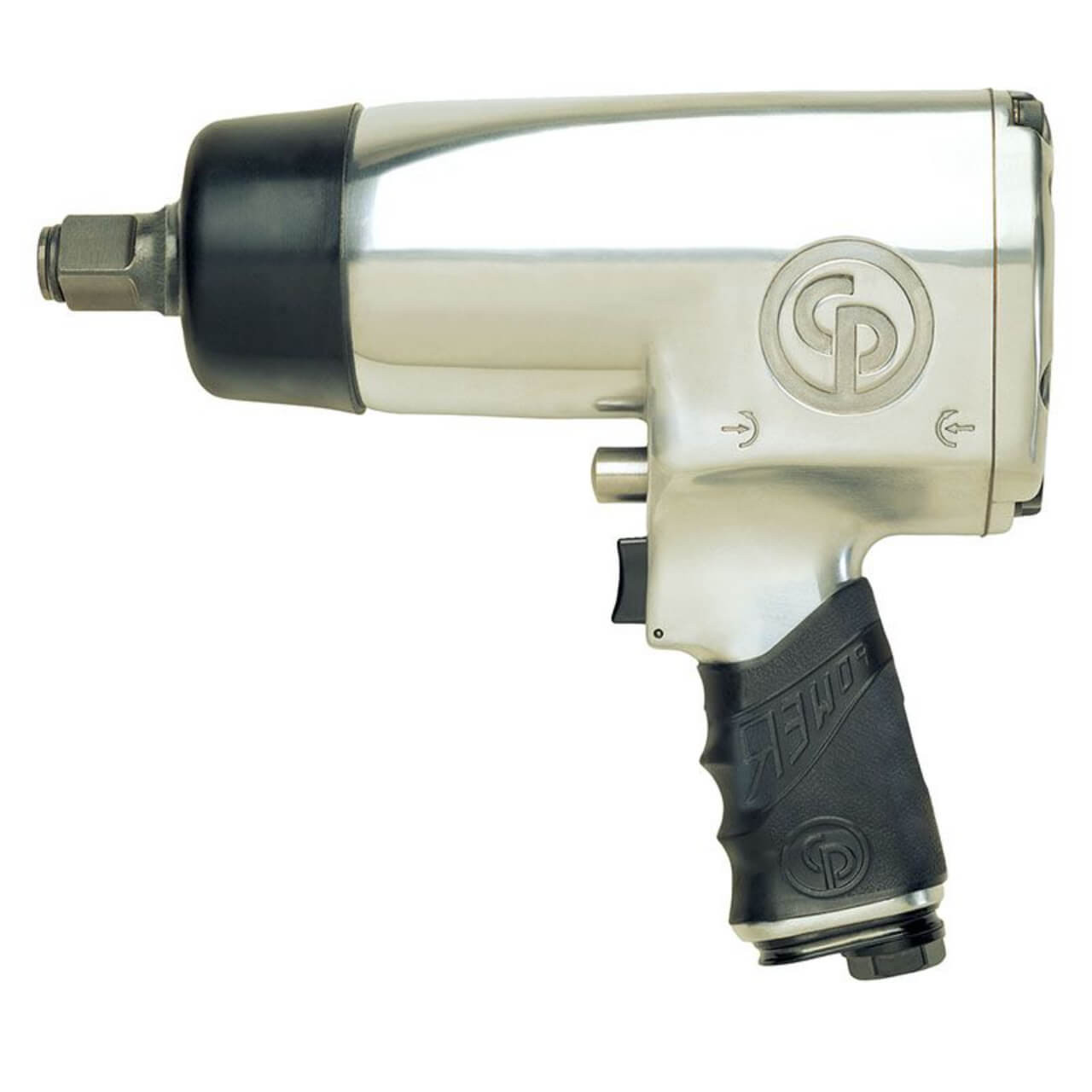

The CP772 Series is the "Classic" 3/4" impact wrench, designed with a pin clutch mechanism in oil bath and a metal motor housing for high durability.
SPECIFICATIONS:
- Length (L): 245 mm
- Power weight ratio: 280 Nm/kg
- Max working torque fwd: 949 Nm
- Max torque reverse: 1350 Nm
- Min working torque fwd: 203 Nm
- Torque limited: No
- Free Speed: 4200 rpm
- Sound Power: 107 dB(A)
- Sound Pressure: 96 dB(A)
- Uncertainty vibration-K: 2 m/s²
- Vibration: 5.8 m/s²
- Air inlet thread size (in): 3/8
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.5 in
- Min hose diam (5 m hose length): 13 mm
- Blow per minute: 900
- Body: Aluminum
- Clutch housing: Aluminum
- Clutch lubrication type: Oil bath
- Handle type: Pistol
- Impact mecanism: Pin clutch
- Output drive size (in): 3/4
- Output drive type: Sq
- Output retainer type: Frictionring
- Starting system: Trigger
