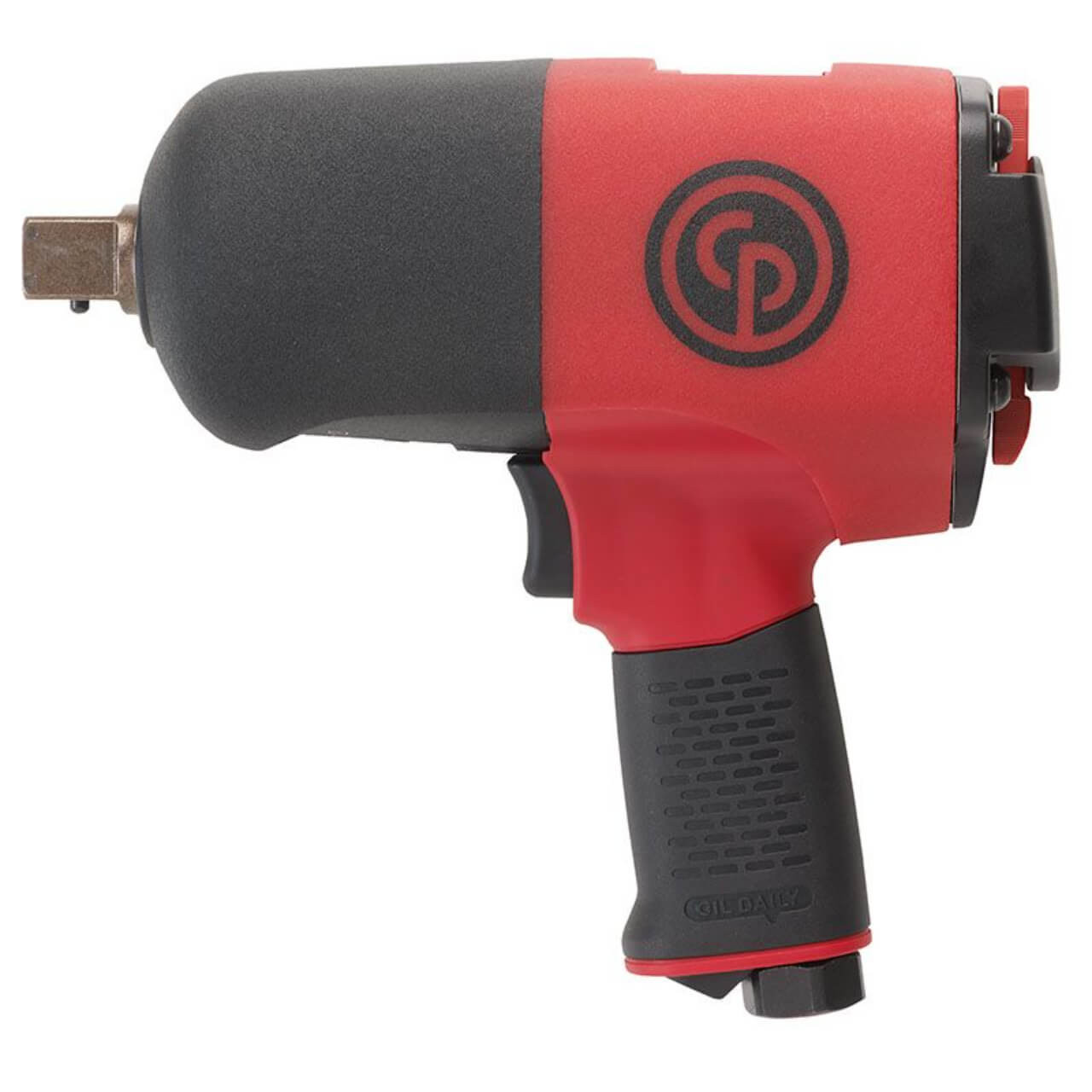

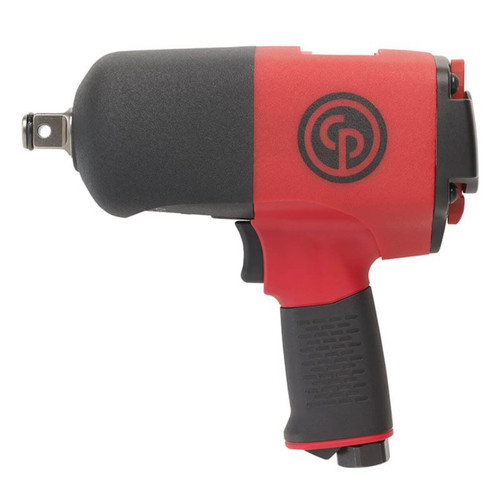

This series of ultralight, ergonomic impact wrenches, designed with a durable twin hammer clutch mechanism is highly recommended. The advantages of pneumatic technology are reinforced by the lightweight composite body design and an aluminium clutch housing for long-term use. Bolt mounting and removal is facilitated by ergonomic options such as an integrated bail and rubber grip handle. The CP82 series is available in 9 models with pin or ring dual socket retainer for a maximum reverse torque from 450 up to 1,650 Nm (332 up to 1217 ft.lb). The range extends from 3/8" to 3/4".
SPECIFICATIONS:
- Length (L): 230 mm
- Power weight ratio: 500 Nm/kg
- Side to Center: 40 mm
- Free Speed: 6500 rpm
- Max working torque fwd: 1250 Nm
- Max torque reverse: 1650 Nm
- Min working torque fwd: 250 Nm
- Sound Power: 107 dB(A)
- Sound Pressure: 96 dB(A)
- Uncertainty vibration-K: 6.8 m/s²
- Vibration: 15.5 m/s²
- Air inlet thread size (in): 3/8
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.5 in
- Min hose diam (5 m hose length): 13 mm
- Blow per minute: 1000
- Body: Composite
- Clutch housing: Aluminium
- Clutch lubrication type: Grease
- Handle type: Pistol
- Impact mecanism: Twin hammer
- Main Material type: Composite
- Output drive size (in): 3/4
- Output drive type: Sq
- Output retainer type: Pin retainer
- Starting system: Trigger
- Suspension option: Included
| Inner Qty: | 1 |
