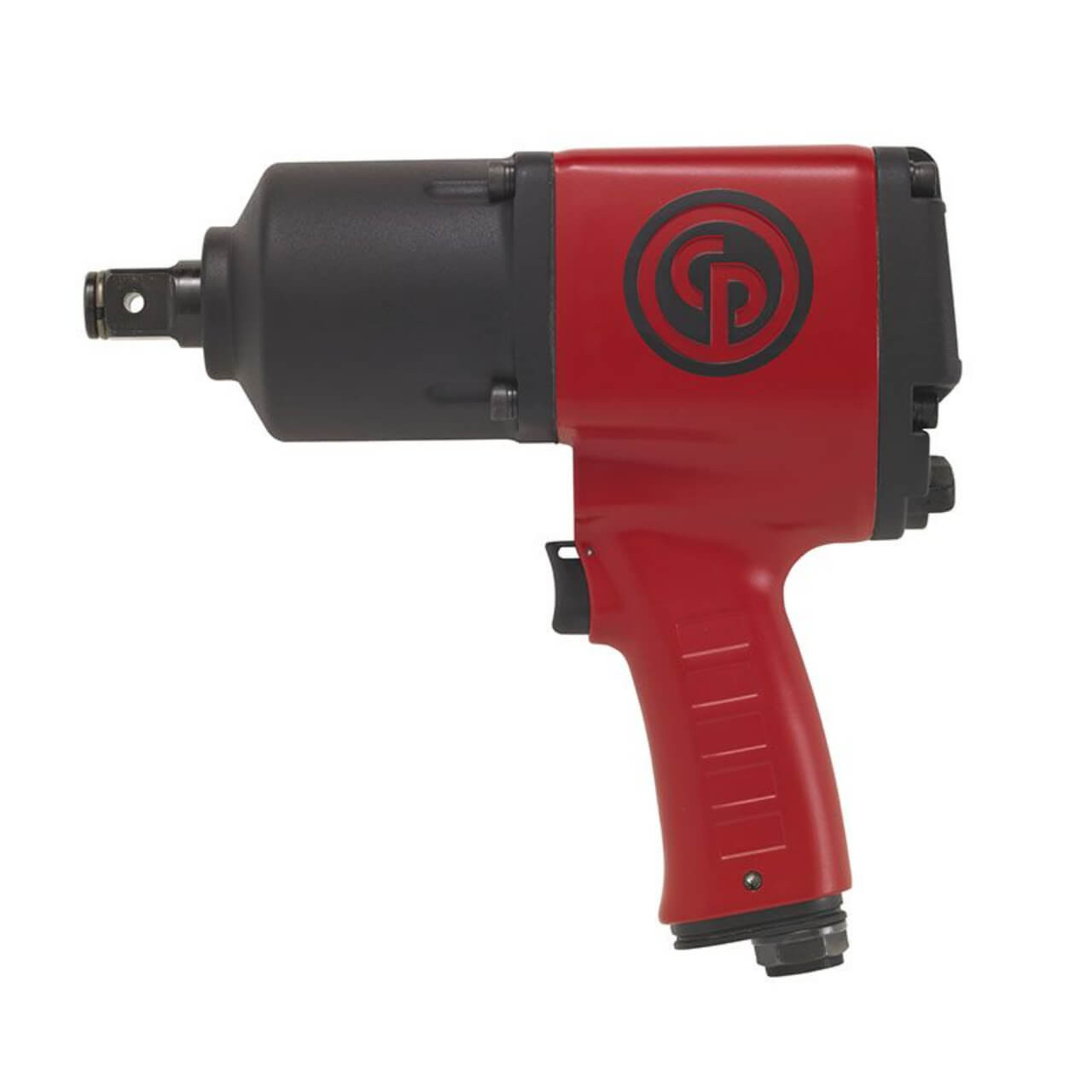

This 3/4" impact wrench, designed with a twin hammer impact mechanism and a metal motor housing for good performance is highly recommended. High productivity is ensured with a torque of 1,100 ft.lbs / 1,500 Nm. This model belongs to the CP7630 series which is composed of 2 models: 3/4" short anvil and 3/4" long anvil (6" anvil).
SPECIFICATIONS:
- Length (L): 240 mm
- Max working torque fwd: 1090 Nm
- Max torque reverse: 1500 Nm
- Min working torque fwd: 177 Nm
- Torque limited: No
- Free Speed: 6900 rpm
- Air consumption at free speed: 22 l/s
- Sound Power: 116.3 dB(A)
- Sound Pressure: 105.3 dB(A)
- Uncertainty vibration-K: 3 m/s²
- Vibration: 9.8 m/s²
- Air consumption at load: 9.6 l/s
- Air inlet thread size (in): 3/8
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.5 in
- Min hose diam (5 m hose length): 13 mm
- Body: Aluminium
- Clutch housing: Aluminium
- Clutch lubrication type: Grease
- Handle type" Pistol
- Impact mecanism: Twin hammer
- Output drive size (in): 3/4
- Output drive type: Sq
- Output retainer type: Dual
- Starting system: Trigger
