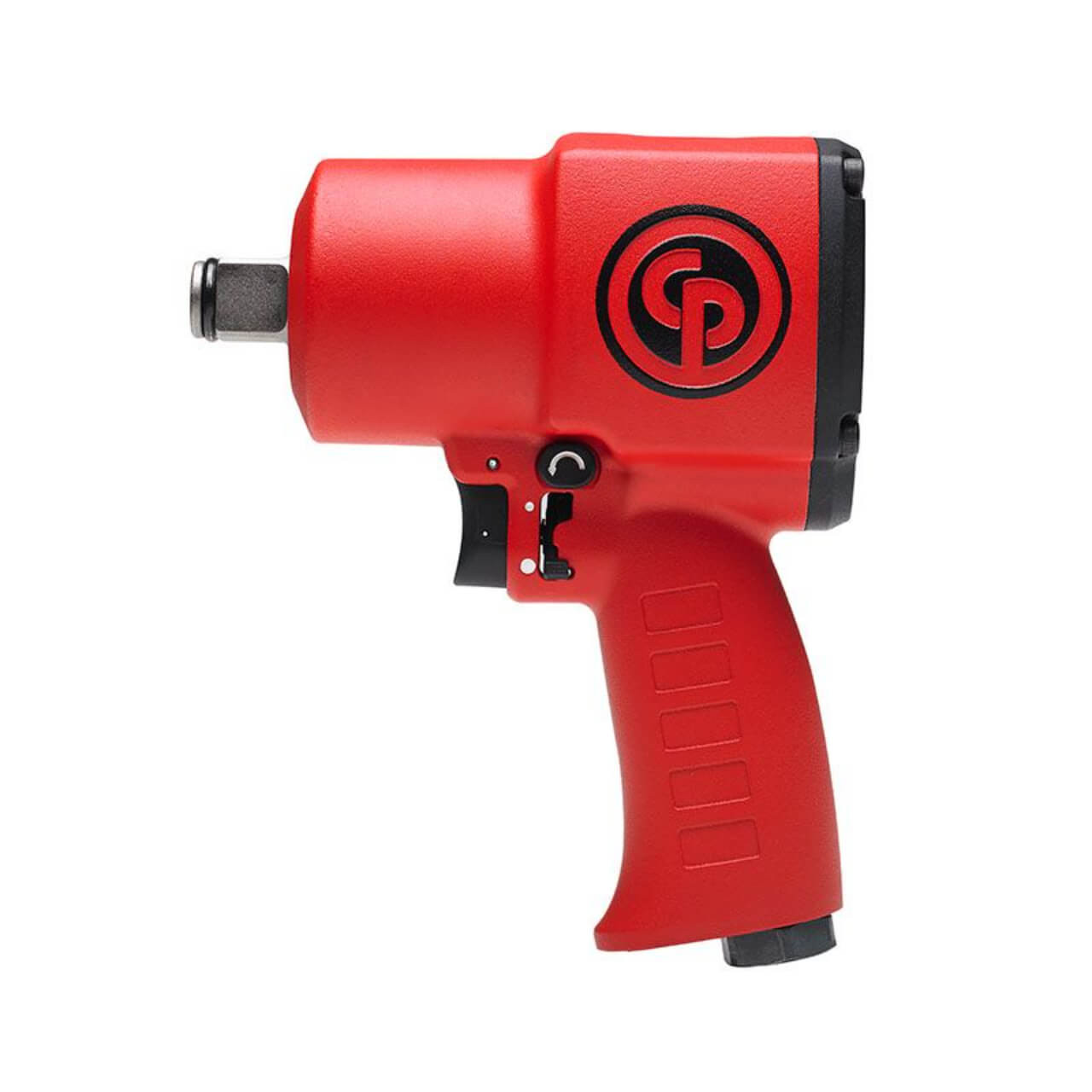

This ultra compact 3/4" impact wrench benefits from S2S technology for an excellent handling experience. With a torque of up to 1,050 ft.lbs / 1,420 Nm, the CP7762 Series has an excellent power-to-weight ratio. Its twin hammer impact mechanism and metal housing are both durable and lightweight.
SPECIFICATIONS:
- Length (L): 158 mm
- Side to Center: 42 mm
- Max working torque fwd: 900 Nm
- Max torque reverse: 1420 Nm
- Min working torque fwd: 201 Nm
- Torque limited: No
- Free Speed: 4850 rpm
- Air consumption at free speed: 26 l/s
- Sound Power: 103.8 dB(A)
- Sound Pressure: 92.8 dB(A)
- Uncertainty vibration-K: 2.8 m/s²
- Vibration: 10.7 m/s²
- Air consumption at load: 16 l/s
- Air inlet thread size (in): 3/8
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.5 in
- Min hose diam (5 m hose length): 13 mm
- Blow per minute: 960
- Body: Aluminum
-Clutch housing: Aluminum
- Clutch lubrication type: Grease
- Handle type: Pistol
- Impact mecanism: Twin hammer
- Output drive size (in): 3/4
- Output drive type: Sq
- Output retainer type: Friction ring
- Starting system: Trigger
| Inner Qty: | 1 |
