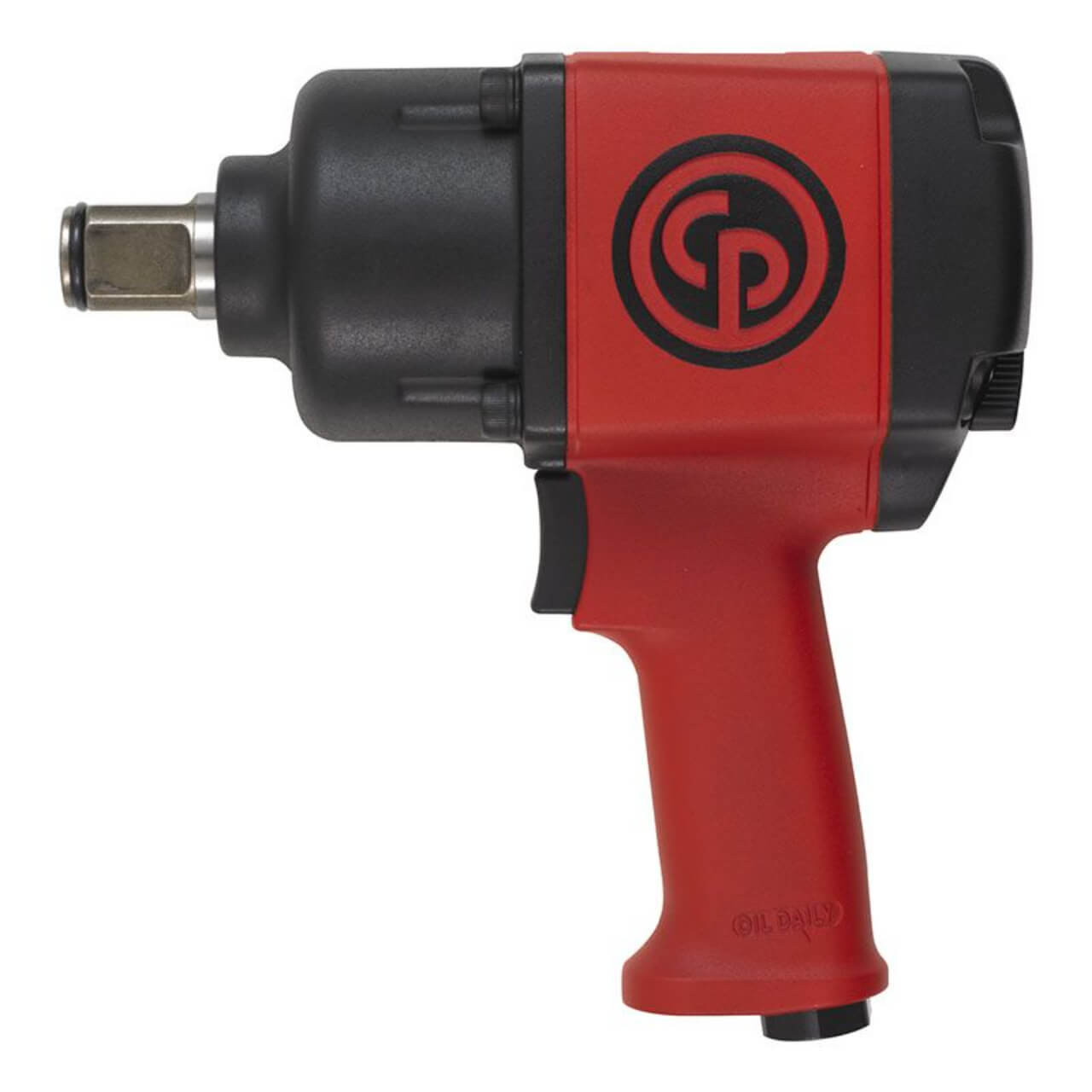

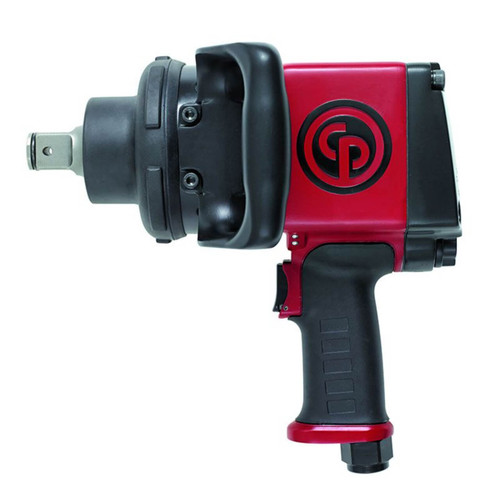

The CP7763/CP7773 Series impact wrench features 3/4" and 1" square drives and delivers reverse torque up to 1,630 Nm / 1,200 ft.lb. Designed for general maintenance and tire changing. Its twin hammer impact mechanism and its composite housing offer high durability in bolting & unbolting applications while also being lightweight and compact. Available in 6 models: 3/4" pistol short anvil, 3/4" pistol long anvil, 3/4" D-handle short anvil, 3/4" D-handle long anvil (6" anvil), 1" D-handle short anvil, and 1" D-handle long anvil (6" anvil).
SPECIFICATIONS:
- Length (L): 234 mm
- Side to Center: 45 mm
- Max working torque fwd: 1280 Nm
- Max torque reverse: 1630 Nm
- Min working torque fwd: 136 Nm
- Torque limited: No
- Free Speed: 6300 rpm
- Sound Power: 107 dB(A)
- Sound Pressure: 96 dB(A)
- Uncertainty vibration-K: 4.2 m/s²
- Vibration: 10.4 m/s²
- Air consumption at load: 14 l/s
- Air inlet thread size (in): 3/8
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.5 in
- Min hose diam (5 m hose length): 13 mm
- Blow per minute: 900
- Body: Aluminum
- Clutch housing: Aluminum
- Clutch lubrication type: Grease
- Handle type: Pistol
- Impact mechanism: Twin hammer
- Output drive size (in): 1
- Output drive type: Sq
- Output retainer type: Friction ring
- Starting system: Trigger
| Inner Qty: | 1 |
