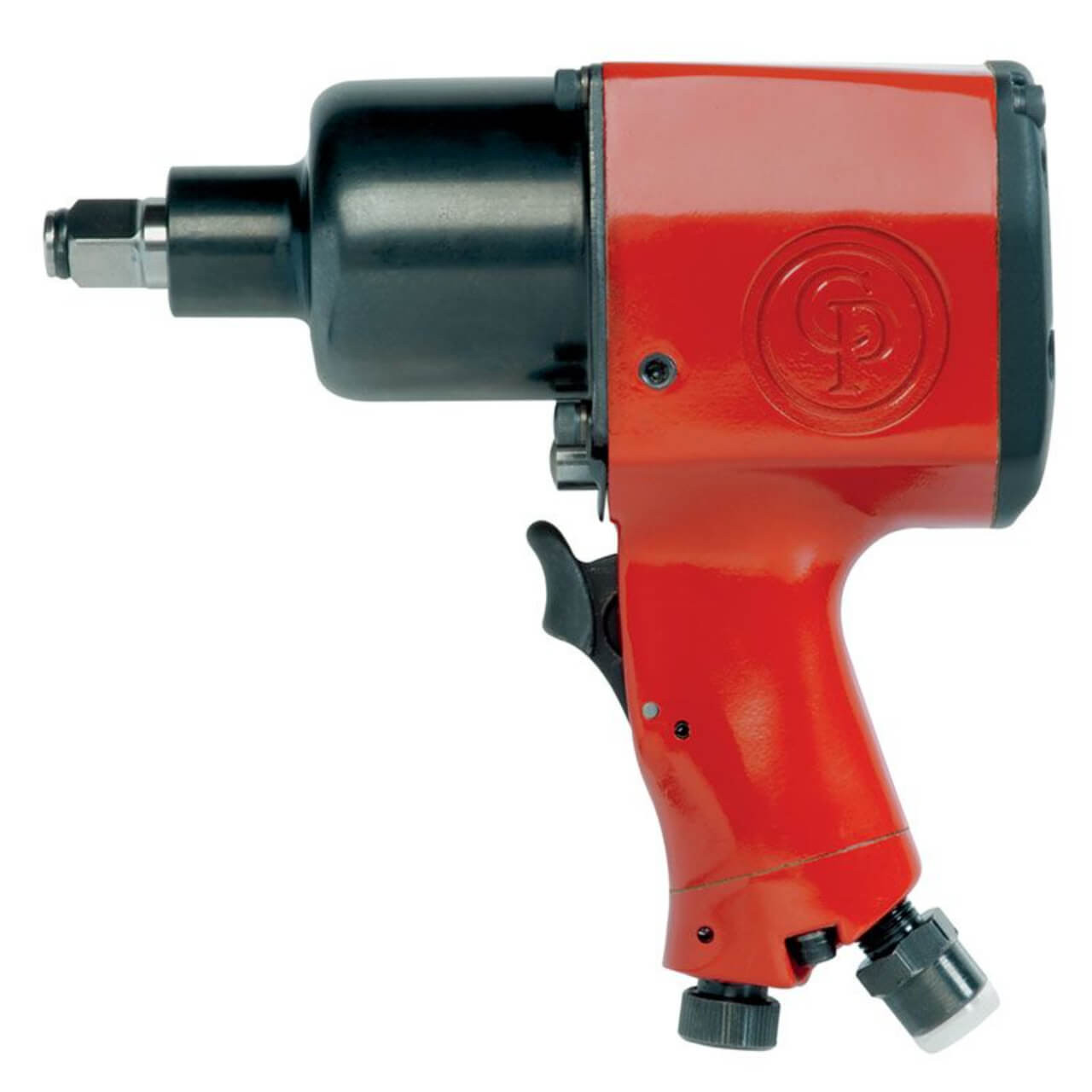

The CP9541/42/61 series of 3/4", 1" impact wrenches - features the fast and reliable Dyna-Pact pin clutch mechanism, an aluminium body, and steel clutch housing. The design offers high performance in term of torque, vibration, and durability for MRO applications. The range consists of 3 models: CP9541 with ring socket retainer, CP9542 with pin socket retainer for a maximum reverse torque of up to 610 Nm /450 ft.lb. and the 3/4" CP9561 with hole socket retainer, which delivers a maximum reverse torque of up to 1,250 Nm /885 ft.lb.
SPECIFICATIONS:
- Length (L): 168 mm
- Power weight ratio: 240 Nm/kg
- Side to Center: 30 mm
- Free Speed: 8900 rpm
- Max working torque fwd: 434 Nm
- Max torque reverse: 610 Nm
- Min working torque fwd: 34 Nm
- Torque limited: No
- Free Speed: 8900 rpm
- Air inlet thread size (in): 1/4
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (5 m hose length): 10 mm
- Sound Power: 100 dB(A)
- Sound Pressure: 89 dB(A)
- Uncertainty vibration-K: 2.5 m/s²
- Vibration: 5.5 m/s²
- Blow per minute: 1100
- Body: Aluminium
- Clutch housing: Steel
- Clutch lubrication type: Grease
- Handle type: Pistol
- Impact mecanism: Pin clutch
- Main Material type: Aluminium
- Output drive size (in): 1/2
- Output drive type: Sq
- Output retainer type: Pin retainer
- Starting system: Trigger
