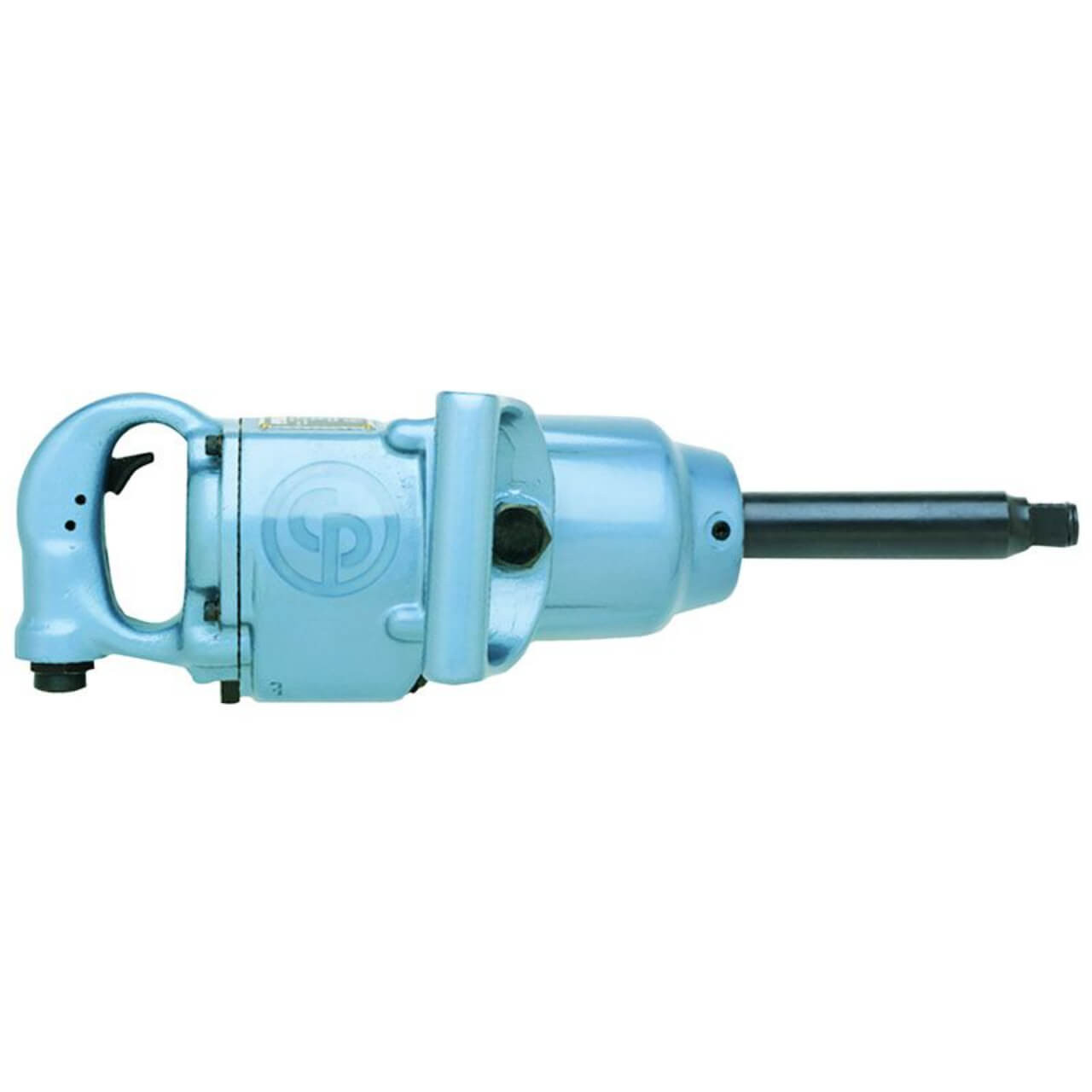

Designed for heavy vehicle tire changing applications, the CP797 Series 1" impact wrench provides a torque of up to 1,400 ft.lbs / 1,898 Nm. The rocking dog impact mechanism and metal housing offer high durability for bolting applications. The CP797 series is available in 3 models: 1" short anvil, 1" long anvil (6" anvil) and 1" long anvil (6" anvil) with spline retainer.
SPECIFICATIONS:
- Length (L): 565 mm
- Power weight ratio: 140 Nm/kg
- Free Speed: 4200 rpm
- Sound Power: 121 dB(A)
- Sound Pressure: 110 dB(A)
- Uncertainty vibration-K: 4.3 m/s²
- Vibration: 12.8 m/s²
- Air inlet thread size (in): 1/2
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.5 in
- Min hose diam (5 m hose length): 13 mm
- Blow per minute: 1080
- Body: Aluminium
- Clutch housing: Aluminium
- Clutch lubrication type: Oil bath
- Handle type: D-handle
- Impact mecanism: Double rockingdog
- Main Material type: Aluminium
- Output drive size (in): 1
- Output drive type: Sq
- Output retainer type: Friction ring
- Side handle: Yes
- Starting system: Trigger
Inner Qty: | 1 |
