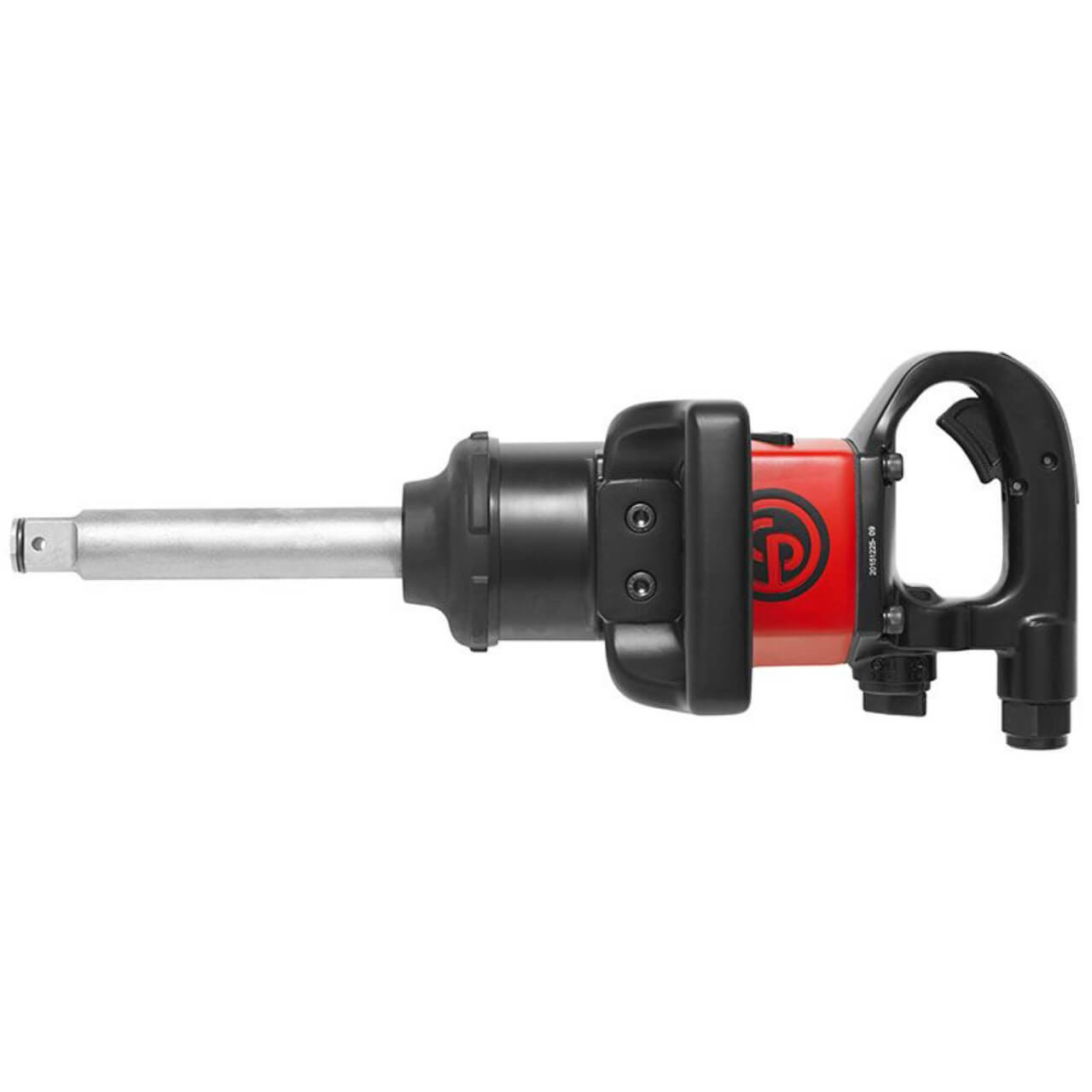

Optimal fastening and unbolting processes with this ultra lightweight 1" impact wrench. Featuring a pinless closed reinforced rocking dog impact mechanism and metal housing, this tool is designed to optimise tire changing. It delivers a maximum reverse torque up to 1,770 ft.lbs / 2,400 N. The CP7783 series consists of 2 models: 1" short anvil and 1" long anvil (6" anvil).
SPECIFICATIONS:
- Length (L): 500 mm
- Max working torque fwd: 1700 Nm
- Max torque reverse: 2400 Nm
- Min working torque fwd: 560 Nm
- Torque limited: No
- Free Speed: 6200 rpm
- Sound Power: 113 dB(A)
- Sound Pressure: 102 dB(A)
- Uncertainty vibration-K: 4.1 m/s²
- Vibration: 15.1 m/s²
- Air consumption at load: 19 l/s
- Air inlet thread size (in): 1/2
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.75 in
- Min hose diam (5 m hose length): 13 mm
- Blow per minute: 900
- Body: Aluminum
- Clutch housing: Aluminum
- Clutch lubrication type: Grease
- Handle type: D-handle
- Impact mechanism: Pinless rocking dog
- Output drive size (in): 1
- Output drive type: Sq
- Output retainer type: Dual
- Starting system: Trigger
| Inner Qty: | 1 |
