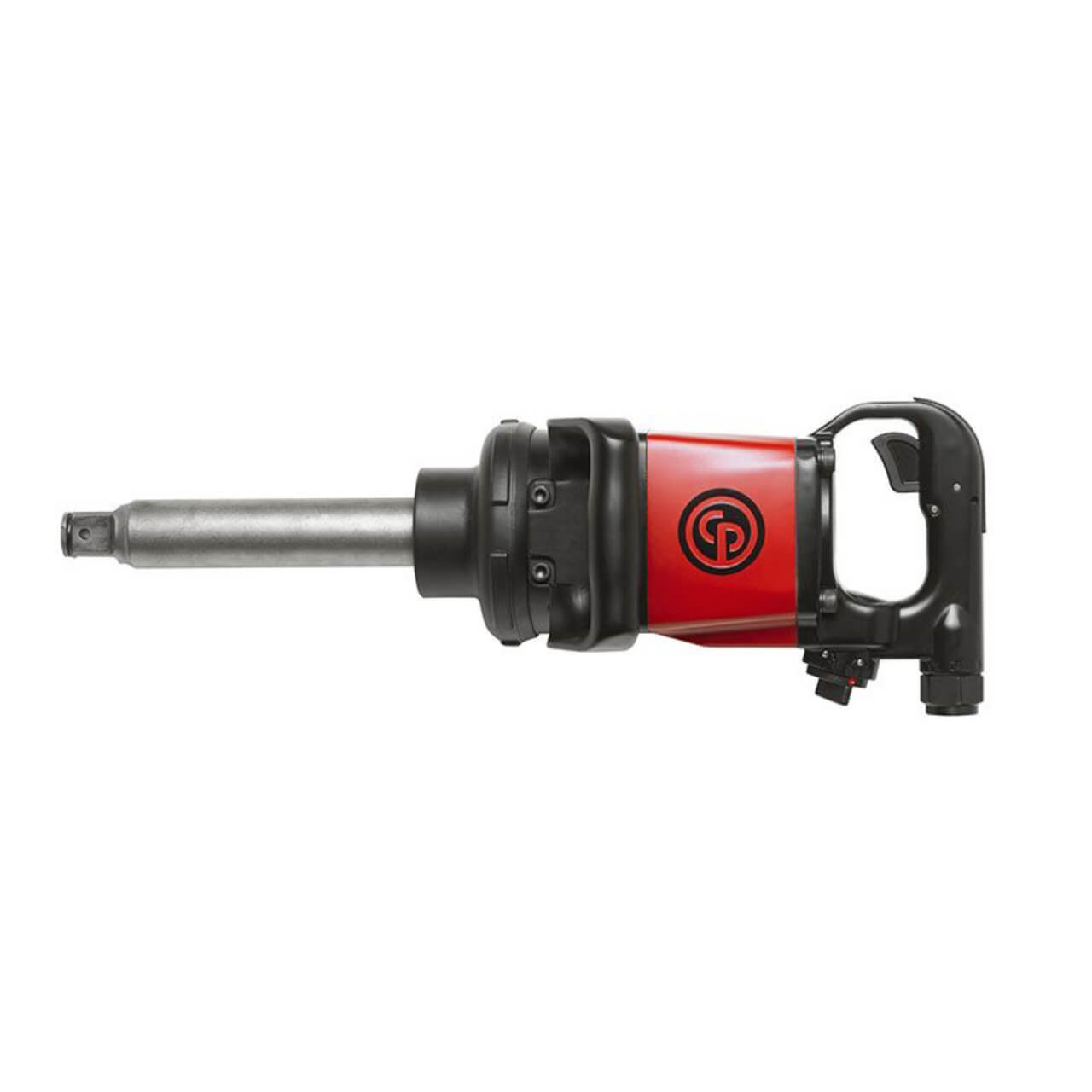

Designed for heavy tire changing applications with its torque limited in forward of 370 ft.lbs / 500 Nm and its maximum torque in reverse of 1,920 ft.lbs / 2,600Nm, the 1" impact wrench CP7782TL series limits the risk of over tightening during the tightening phase, while at the same time being very powerful once nuts or bolts have to be removed. In addition, the pinless closed reinforced rocking dog impact mechanism and metal housing offer high durability.
SPECIFICATIONS:
- Height (H): 171.8 mm
- Length (L): 510.8 mm
- Width (W): 210.6 mm
- Power weight ratio: 250 Nm/kg
- Max working torque fwd: 440 Nm
- Max torque reverse: 2600 Nm
- Min working torque fwd: 400 Nm
- orque Control System: Non shut-off-stall
- Torque limited: Yes
- Free Speed: 5200 rpm
- Sound Power: 111 dB(A)
- Sound Pressure: 100 dB(A)
- Uncertainty vibration-K: 1.8 m/s²
- Vibration: 7.8 m/s²
- Air consumption at load: 19 l/s
- Airinlet thread size (in): 1/2
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.5 in
- Min hose diam (5 m hose length): 13 mm
- Blow per minute: 500
- Body: Aluminum
- Clutch housing: Aluminum
- Clutch lubrication type: Grease
- Handle type: D-handle
- Impact mechanism: Pinless rocking dog
- Output drive size (in): 1
- Output drive type: Sq
- Output retainer type: Dual
- Starting system: Trigger
| Inner Qty: | 1 |
