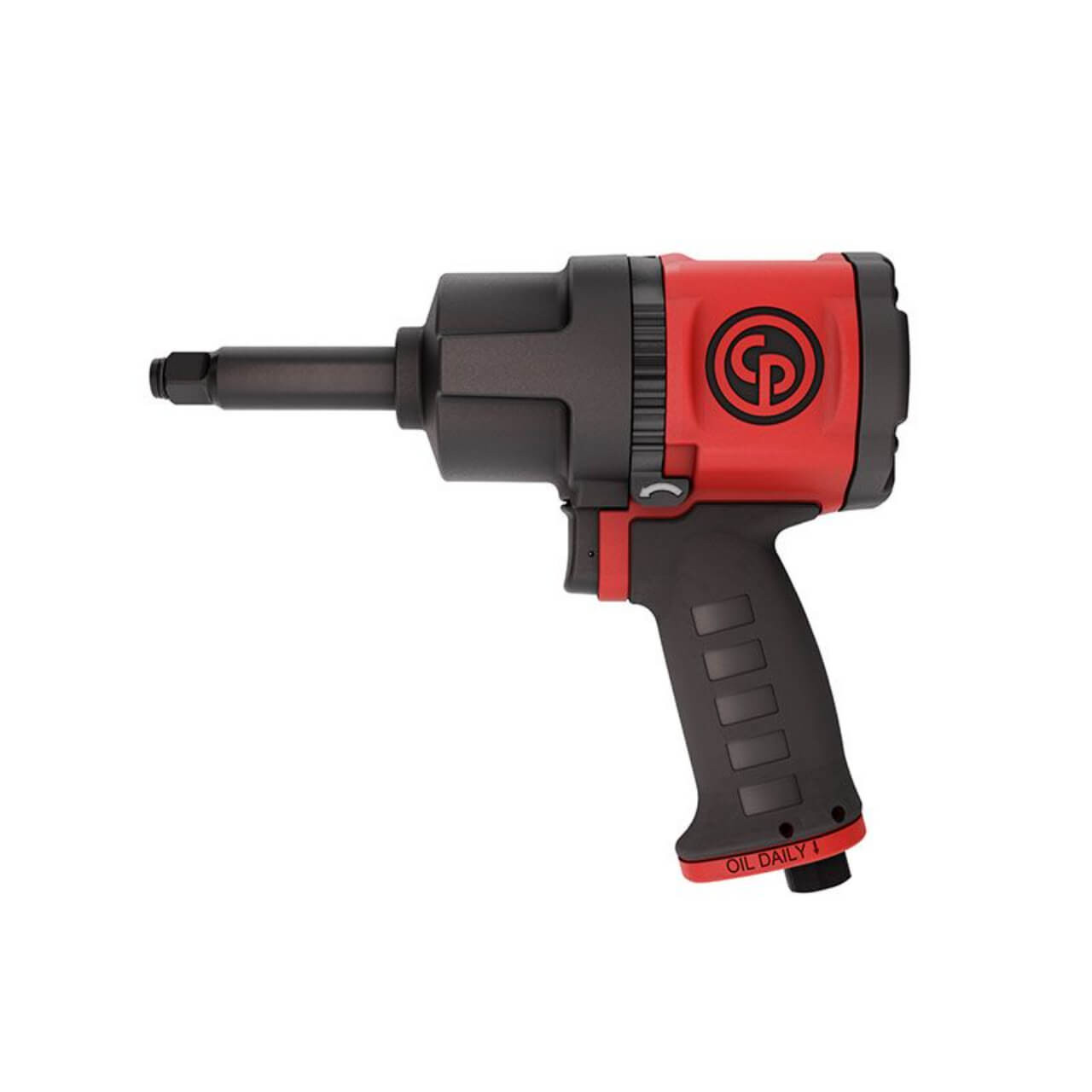

The CP7748 series impact wrench with its torque of 960ft.lbs / 1,300 Nm, twin hammer impact mechanism, and composite housing is powerful and durable and ensures efficient bolting and unbolting when changing wheels and tires on light vehicles. In addition, the new forward/reverse system & power control (ring system) increase operator comfort while also improving functionality. The CP7748 series is composed of 2 models: 1/2" short anvil and 1/2" long anvil (2" anvil).
SPECIFICATIONS:
- Height (H): 200 mm
- Length (L): 225 mm
- Side to Center: 39 mm
- Max working torque fwd: 750 Nm
- Max torque reverse: 1300 Nm
- Min working torque fwd: 95 Nm
- Torque limited: No
- Free Speed: 7000 rpm
- Sound Power: 105.3 dB(A)
- Sound Pressure: 94.3 dB(A)
- Uncertainty vibration-K: 3.8 m/s²
- Vibration: 11 m/s²
- Air inlet thread size (in): 1/4
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 10 mm
- Blow per minute: 1350
- Body: Composite
- Clutch housing: Aluminum
- Clutch lubrication type: Grease
- Handle type: Pistol
- Impact mecanism: Twin hammer
- Output drive size (in): 1/2
- Output drive type: Sq
- Output retainer type: Friction ring
- Starting system: Trigger
| Inner Qty: | 1 |
