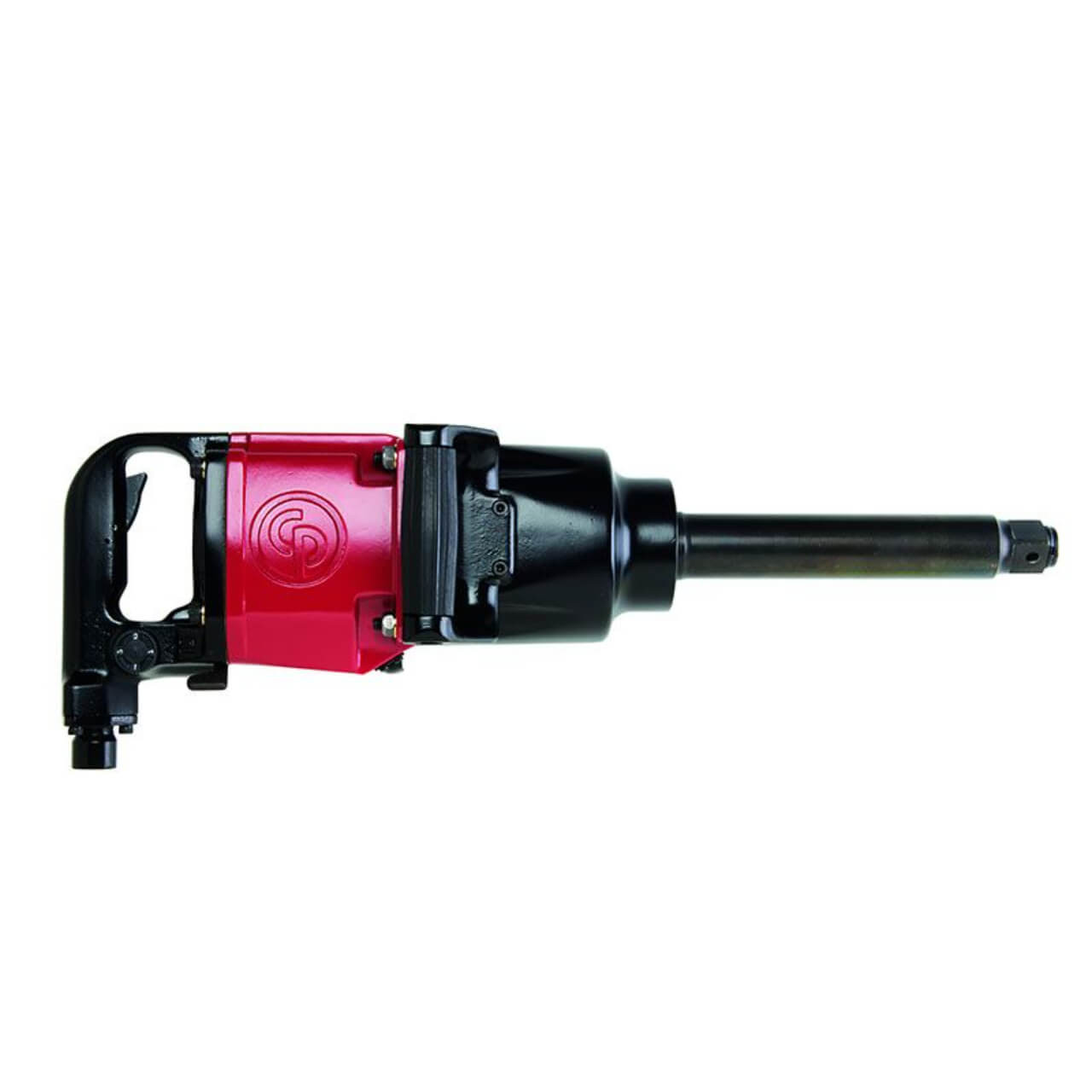

The CP5000 Series 1" impact wrench with extended anvil is designed with a rocking dog mechanism and a metal motor housing for high durability in bolting & unbolting applications. High productivity is ensured with a maximum reverse torque up to 2,500 ft.lbs / 3,390 Nm.
SPECIFICATIONS:
- Length (L): 572 mm
- Power weight ratio: 200 Nm/kg
- Free Speed: 3700 rpm
- Air consumption at load: 25 l/s
- Air inlet thread size (in): 1/2
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.5 in
- Min hose diam (5 m hose length): 13 mm
- Sound Power: 114 dB(A)
- Sound Pressure: 103 dB(A)
- Uncertainty vibration-K: 2.6 m/s²
- Vibration (m/s²): 8.5
- Vibration: 8.5 m/s²
- Max working torque fwd: 2800 Nm
- Max torque reverse: 3390 Nm
- Min working torque fwd: 240 Nm
- Torque limited: No
- Blow per minute: 540
- Body: Aluminum
- Clutch housing: Steel
- Clutch lubrication type; Grease
- Handle type: D-handle
- Impact mecanism: Pinless rocking dog
- Output drive size (in): 1
- Output drive type: Sq
- Output retainer type: Dual
- Side handle: Yes
- Starting system: Trigger
| Inner Qty: | 1 |
