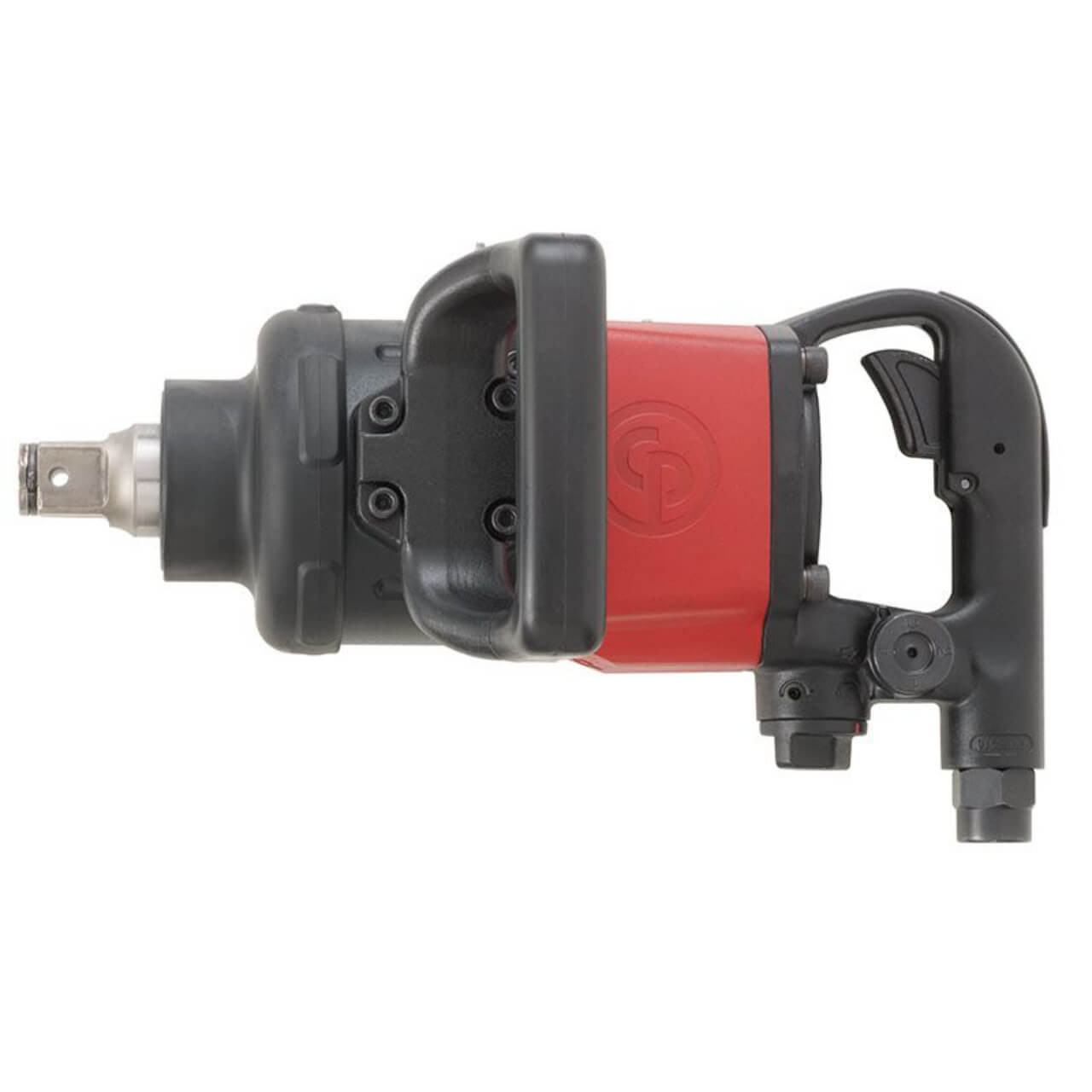

Optimize bolting and unbolting with this 1" impact wrench. Featuring a durable pinless rocking dog clutch mechanism, aluminium body and clutch housing, this tool is designed to operate comfortably in the most demanding industrial environments, including both maintenance and production. The CP6910/CP6920 Series is defined by 2 models, pistol CP6110-P24 and straight D-handle CP6120-D24 for a delivered max reverse torque of up to 2,600 Nm / 1920 ft.lb.
SPECIFICATIONS:
- Length (L): 360 mm
- Side to Center: 55 mm
- Free Speed: 5000 rpm
- Max working torque fwd: 2100 Nm
- Max torque reverse: 2600 Nm
- Min working torque fwd: 500 Nm
- Torque limited: No
- Air inlet thread size (in): 1/2
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.5 in
- Min hose diam (5 m hose length): 13 mm
- Sound Pressure: 111 dB(A)
- Uncertainty vibration-K: 2.8 m/s²
- Blow per minute: 650
- Body: Aluminium
- Clutch housing: Aluminium
- Clutch lubrication type: Oil bath
- Handle type: D-handle
- Impact mechanism: Pinless rocking dog
- Output drive size (in): 1
- Output drive type: Sq
- Output retainer type: Dual
- Starting system: Trigger
