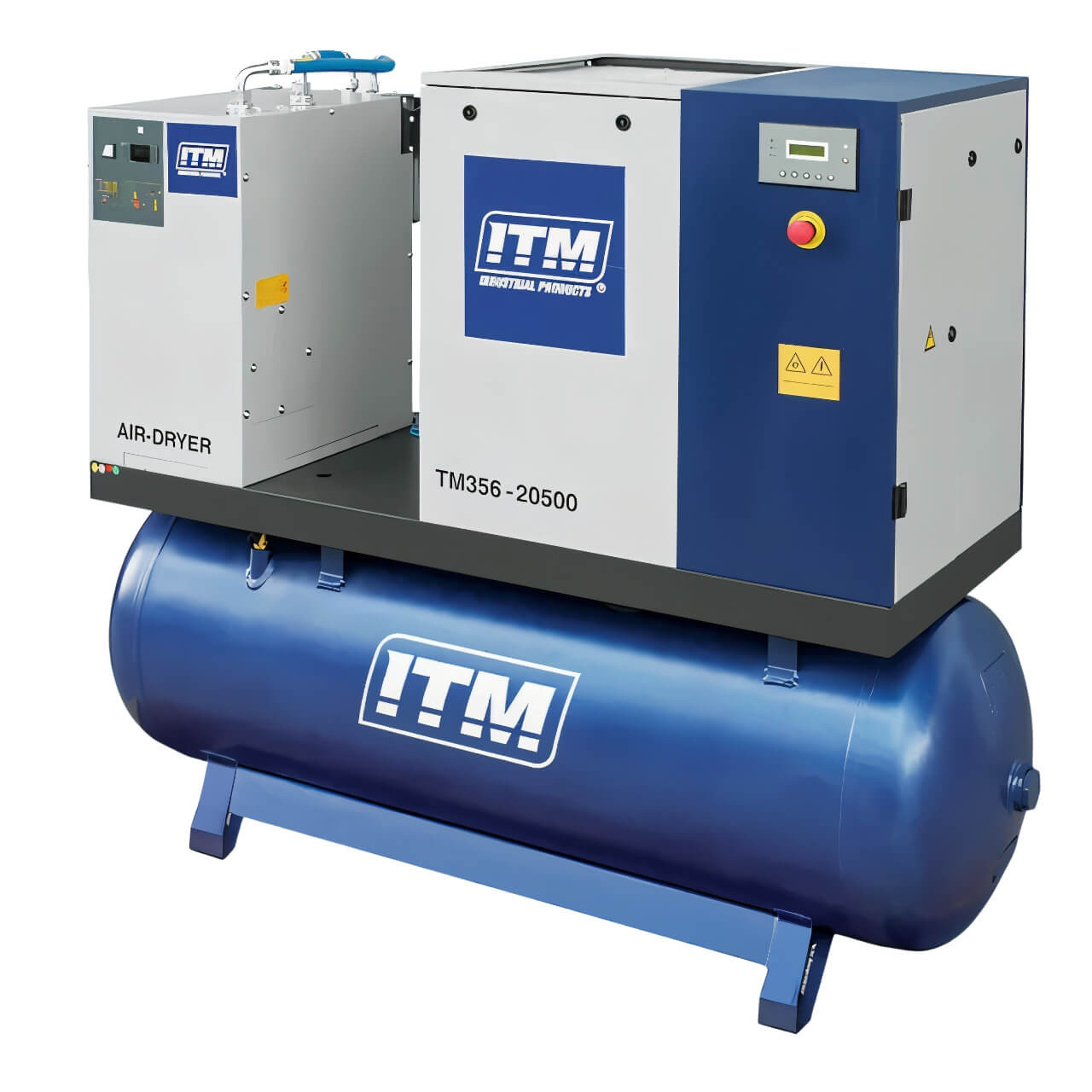

FEATURES:
- Complete ready to go package with screw, tank, dryer and pre/post filters included.
- Fully sealed cabinet with soundproofing and noise-reducing partitions to minimise noise.
- Extra large surface cooler allows unit to operate at ambient temperatures up to 46° C .
- Premium filtration with ultra low oil carry over meaning less contamination resulting in cleaner air.
- New generation Air End design together with precision manufacturing ensures constant high performance.
- Intelligent control system with self-service timing management.
- All the main components are easily accessible, ensuring fast and simple maintenance.
- Warranty: 2 Years on pump and 1 year on all other components.
- Nationwide service and warranty supported by Air Technology Group and ITM service network.
SPECIFICATIOPNS:
- Pump Type: Screw
- Motor: 15kW (20HP) - Three Phase 415V
- Tank Capacity: 500 L
- Max Pressure: 147 PSI (10 Bar)
- Free Air Delivery: 1980 L/min (70 CFM)
- Noise: 73 dB
- Compressor Dimensions: 188cm L x 65cm W x 158cm H
- Net Weight: 465kg
- Shipping Dimensions:205cm L x 90cm W x 175cm H
- Gross Weight: 588kg
- Effective Working Pressure At Outlet Package: 10.0 bar
Inner Qty: | 1 |
