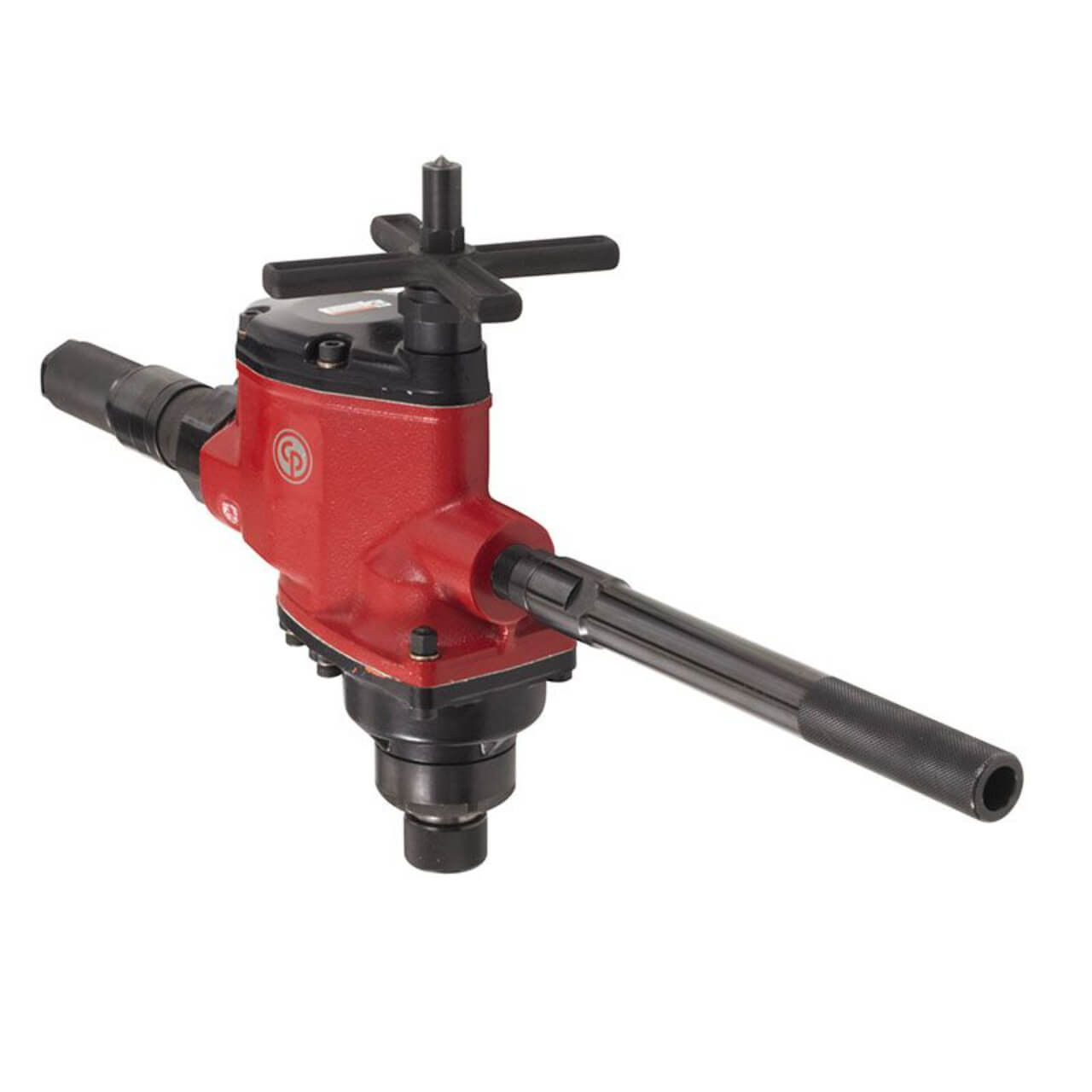

Take advantages of this CP1820R range of durable and precise reversible corner drills. The CP1820R range is defined by 2 models with 1.2 Hp (890 W) to 2.8 Hp (2100 W) pneumatic motor from 380 to 480 RPM and from 78.4 Nm (57.8 ft.lb) to 196.0 Nm (144.6 ft.lb) stall torque. Morse tapper socket are form N° 2 to N° 3. CP1820R reversible corner drills cover a large variety of applications like drilling, reaming & tapping of mild steel, cast iron and forged steel.
SPECIFICATIONS:
- Chuck max capacity (in): 7/8
- Chuck max capacity (mm): 22
- Chuck type: Morse taper 2
- Handle type: T-Handle
- Main Material type: Aluminum
- Reversible: Yes
- Starting system: Self return rolling throttle
- Sound Power: 109 dB(A)
- Sound Pressure: 98 dB(A)
- Uncertainty vibration-K: 1.2 m/s²
- Air consumption at load: 20 l/s
- Air inlet thread size (in): 1/2
- Air inlet thread type: NPT
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.5 in
- Min hose diam (5 m hose length): 13 mm
- Max power: 890 W
- Stall torque: 78.4 Nm
- Free Speed: 480 rpm
- Air consumption at free speed: 0 l/s
- Length (L): 282 mm
| Inner Qty: | 1 |
