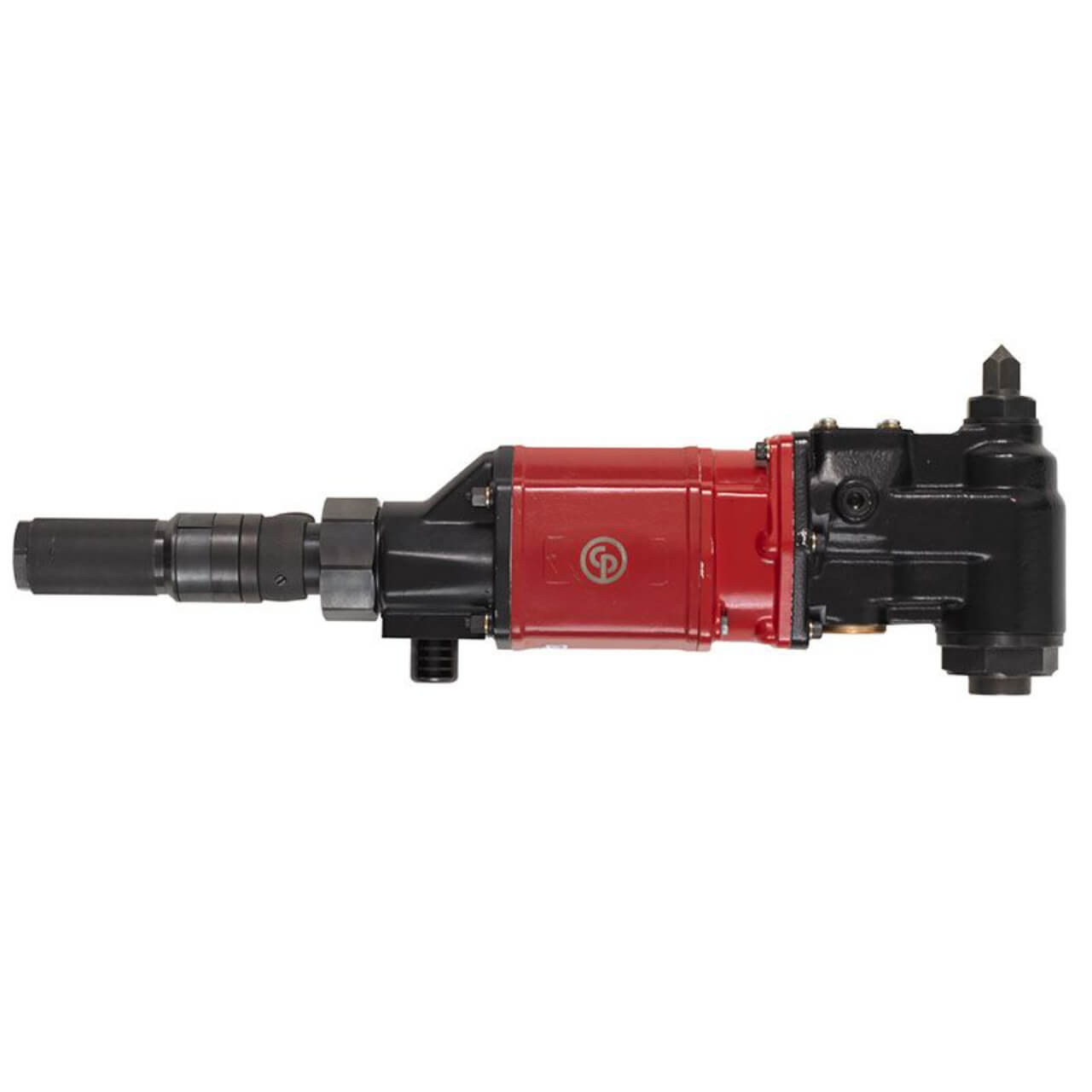

Take advantages of this CP1720R range of durable and precise reversible corner drills. The CP1720R range is defined by 3 models with 1.2 Hp (890 W) to 2.2 Hp (1630 W) pneumatic motor from 140 to 430 RPM and from 80.4 Nm (59.3 ft.lb) to 392.0 Nm (289.3 ft.lb) stall torque. Morse tapper socket are form N° 2 to N° 4. CP1720R reversible corner drills cover a large variety of applications like drilling, reaming & tapping of mild steel, cast iron.
SPECIFICATIONS:
- Chuck max capacity (in): 2
- Chuck max capacity (mm): 50
- Chuck type: Morse taper 4
- Handle type: Corner
- Main Material type: Aluminum
- Reversible: Yes
- Starting system: Self return rolling throttle
- Sound Power: 118 dB(A)
- Sound Pressure: 107 dB(A)
- Uncertainty vibration-K: 0.6 m/s²
- Air consumption at load: 38 l/s
- Air inlet thread size (in): 1/2
- Air inlet thread type: NPT
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.75 in
- Min hose diam (5 m hose length): 19 mm
- Max power: 1630 W
- Stall torque: 392 Nm
- Free Speed: 140 rpm
- Air consumption at free speed: 0 l/s
- Length (L): 595 mm
| Inner Qty: | 1 |
