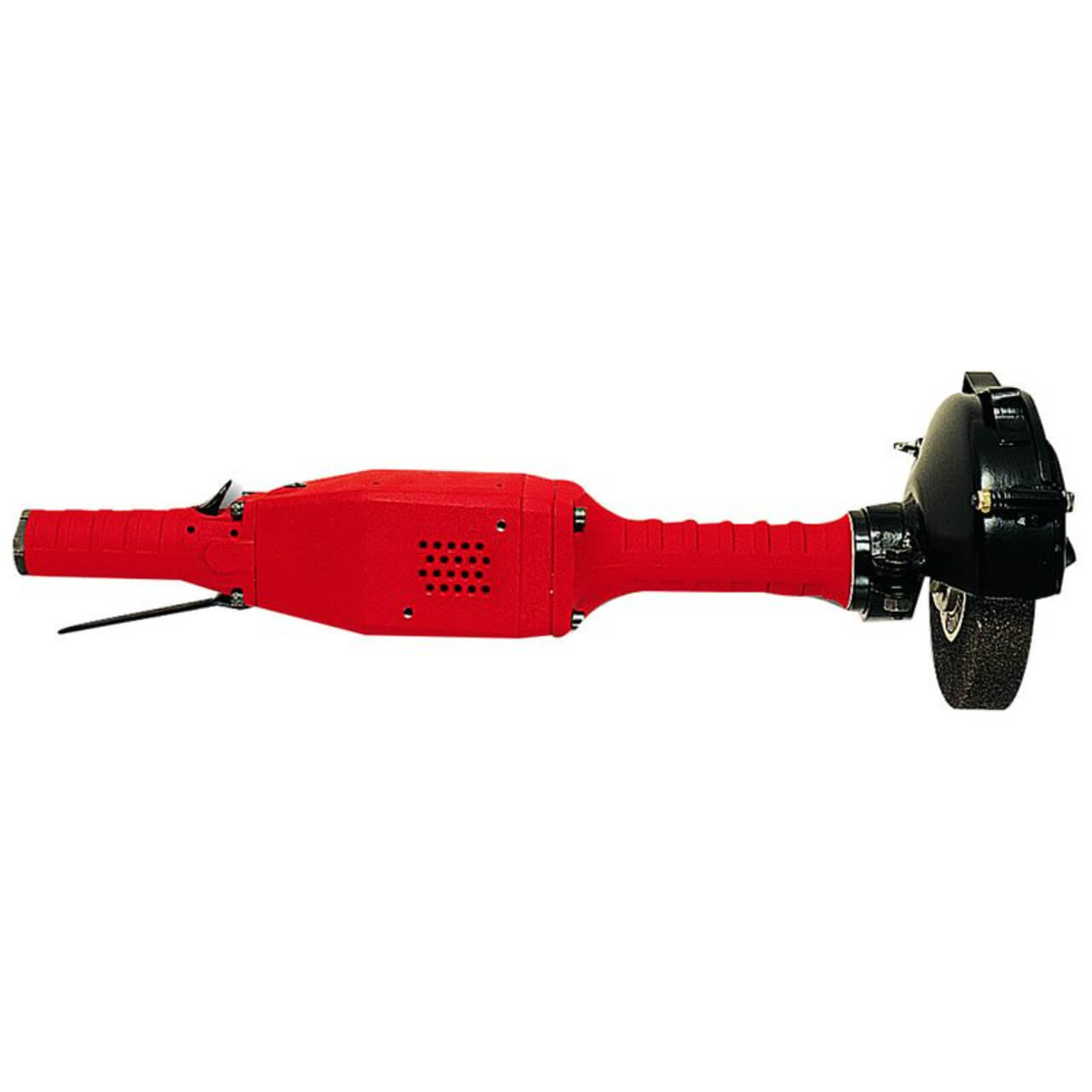

The CP3249 straight wheel grinders range is defined by 4 models, with max wheel capacity from 6x1x5/8' (150x25x15.9 mm) to 8x1x5/8' (200x25x15.9 mm) and a 3.2 hp (2400 W) or 3.4 hp (2700 W) powerful motor. CP3249 Straight Wheel Grinder range free speed is from 4,500 to 6,000 rotations per minute. CP3249-GABSUD and GABSYG are dedicated for ANSI NA market CP3249-GABSUDE and GABSYGE are for CE market.
SPECIFICATIONS:
- Length (L): 492 mm
- Max power: 2700 W
- Free Speed: 6000 rpm
- Air consumption at free speed: 13 l/s
- Overspeed shut-off: No
- Air consumption at load: 41 l/s
- Air inlet thread size (in): 1/2
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.63 in
- Min hose diam (5 m hose length): 15 mm
- Sound Power: 93 dB(A)
- Sound Pressure: 82 dB(A)
- Vibration m/s²: <2.5
- Autobalancer: No
- Exhaust: Side
- Governor type: Weight
- Main Material type: Aluminium
- Output Spindle Thread: 5/8-11 UNC
- Rotative guard type: Band
- Rotative inlet: No
- Spindle lock: No
- Starting system: Safety lever
- Wheel/Disc diameter (in): 6
- Wheel/Disc diameter (mm): 150
- Wheel thickness (in): 1
- Wheel thickness (mm): 25
| Inner Qty: | 1 |
