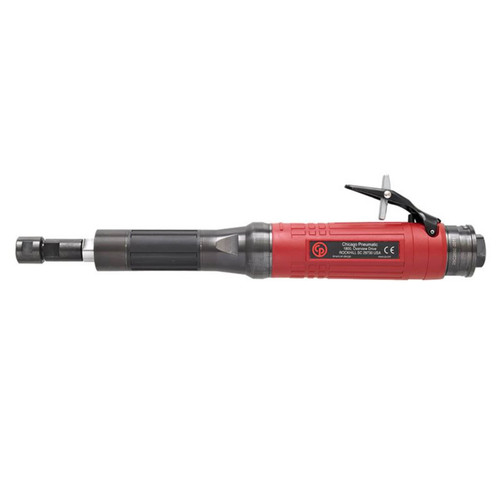

The CP3119 line of straight pneumatic Die Grinders range has a steel housing for demanding grinding, deburring, and contouring applications. 26 models including 13 1/4" (6.35 mm) and 13 CNOMO collet capacity define it. The free speed range is from 10,000 to 60,000 rpm. It is available with a straight, straight extended housing collet spindle, or with a long reach extended one-piece body - 23.7" (603 mm) and 33.6" (853 mm).
SPECIFICATIONS:
- Length (L): 361 mm
- Max power: 900 W
- Free Speed: 18000 rpm
- Air consumption at free speed: 10 l/s
- Air consumption at load: 18 l/s
- Air inlet thread size (in): 3/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 10 mm
- Sound Power: 91 dB(A)
- Sound Pressure: 80 dB(A)
- Vibration m/s²: <2.5
- Angle Type: Straight
- Collet max capacity: 1/4 (6.35mm)
-Collet/Collet holder/Collet nut type: Erickson serie 200 type
- Exhaust: Rear
- Governor type: Ball
- Main Material type: Aluminium, Composite over-sleeve
- Rotative inlet: No
- Spindle lock: No
- Starting system: Safety lever
Inner Qty: | 1 |
