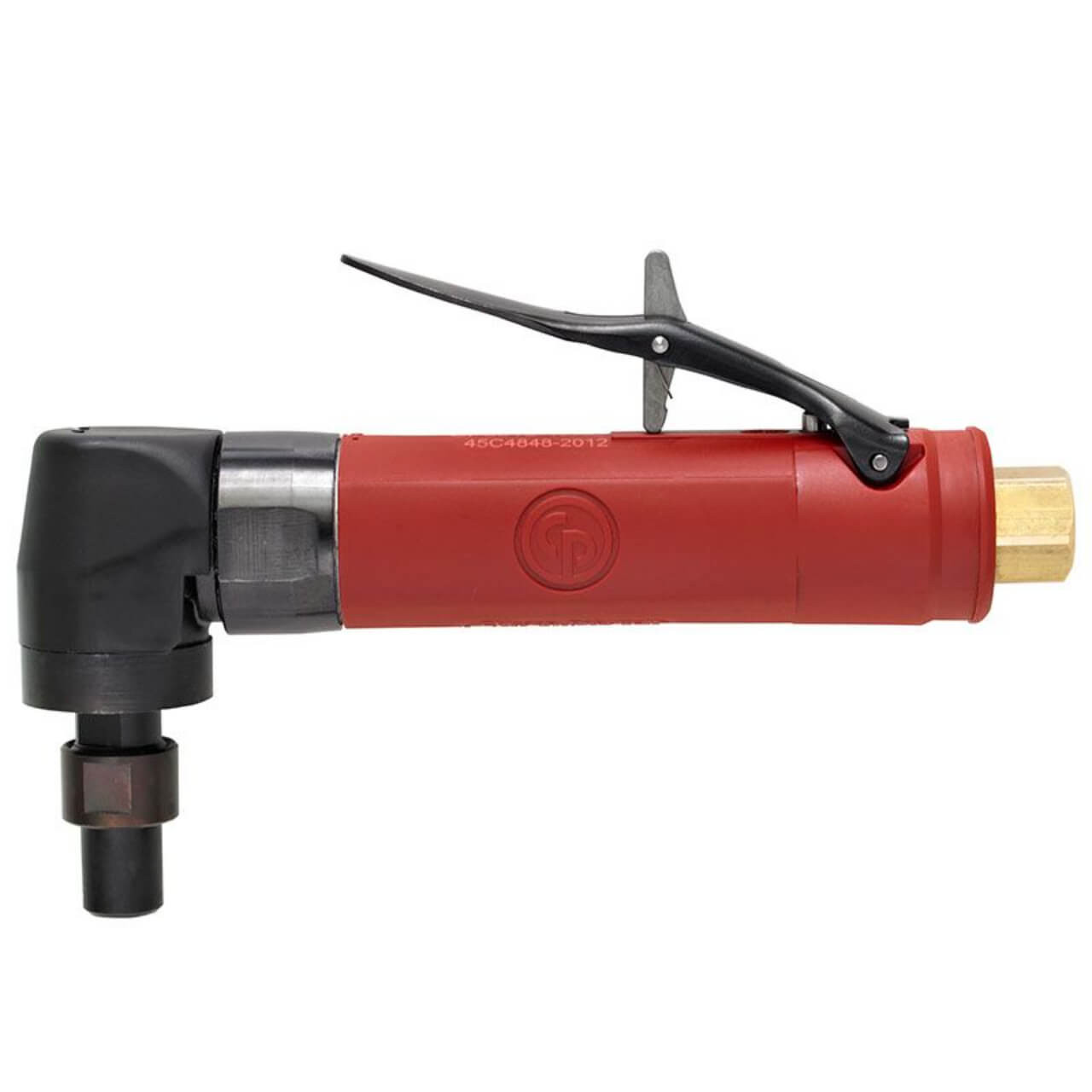

The CP3019 Series - angle pneumatic Die Grinders, with a 1/4' (6.35 mm) collet capacity or CNOMO collet capacity consists of 4 models with 2 free speed options from 12,000 to 20,000 rpm. The powerful motor offers 0.5 hp (375 W) for optimum productivity in heavy applications such as deburring, die contouring, and light chamfering. The range is characterized by a compact design and a simplified safety lever.
SPECIFICATIONS:
- Max power: 375 W
- Free Speed: 12000 rpm
- Air consumption at free speed: 3.2 l/s
- Air consumption at load: 8 l/s
- Air inlet thread size (in): 1/4
- Air inlet thread type: NPT
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.31 in
- Min hose diam (5 m hose length): 10 mm
- Sound Power: 89 dB(A)
- Sound Pressure: 78 dB(A)
- Uncertainty vibration-K: 1.9 m/s²
- Vibration (m/s²): 3.7 m/s²
- Angle Type: 90°
- Collet max capacity: 1/4 (6.35mm)
- Collet/Collet holder/Collet nut type: Erickson serie 300 type
- Exhaust: Rear
- Governor type: Ball
- Main Material type: Aluminium, Composite over-sleeve
- Rotative inlet: No
- Spindle lock: No
- Starting system: Safety lever
- Length (L): 216 mm
| Inner Qty: | 1 |
