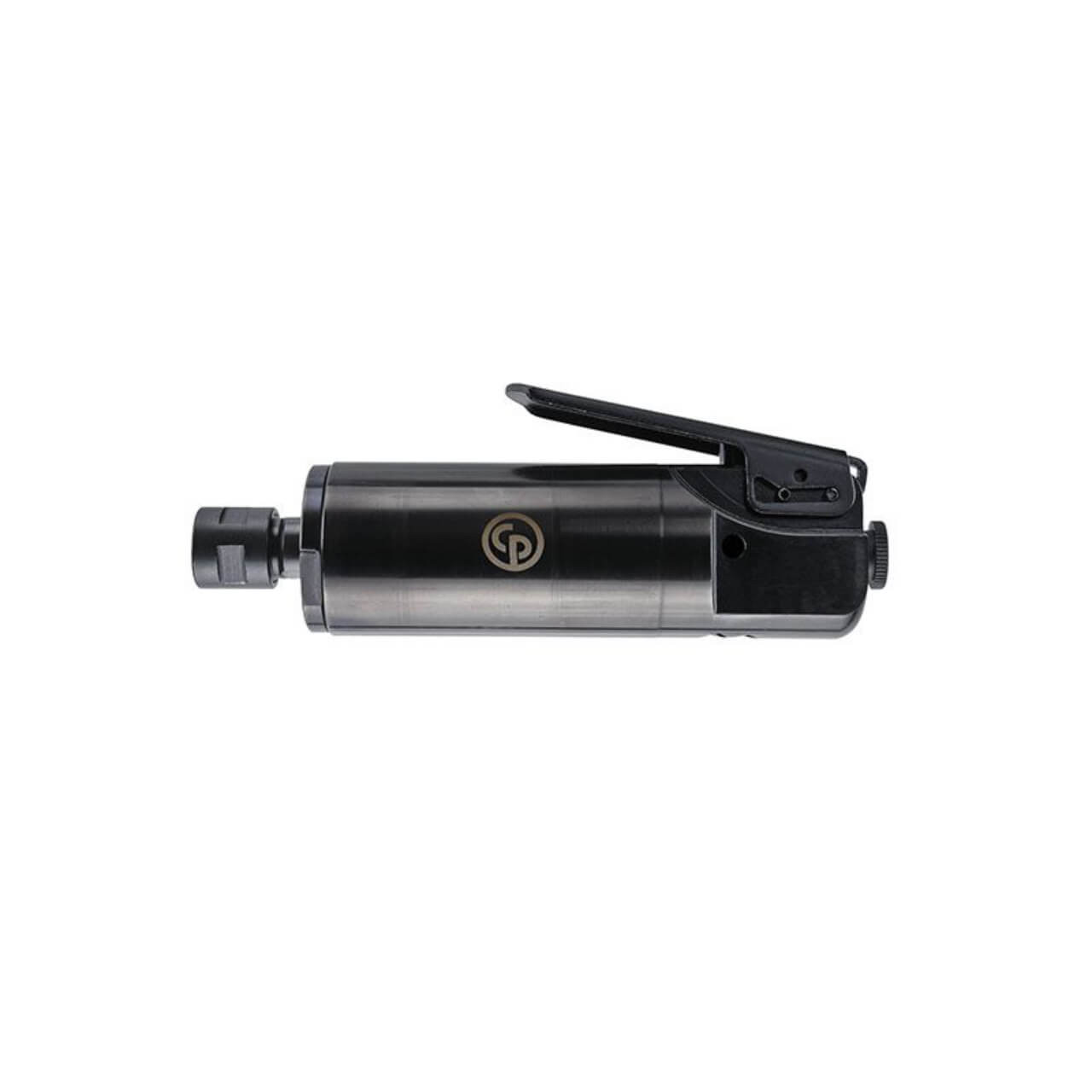

The CP9113G Series, a 1/4' (6.35 mm) capacity die grinder with collet is an industrial maintenance and production tool for grinding, contouring, deburring, and cleaning applications. It delivers a powerful governed motor of 1 hp (750 W) and a free speed up to 25,000 rpm. Available in straight or extended housing collet spindle.
SPECIFICATIONS:
- Length (L): 170 mm
- Max power: 750 W
- Free Speed: 25000 rpm
- Air consumption at free speed: 17 l/s
- Sound Power: 103.9 dB(A)
- Sound Pressure: 92.9 dB(A)
- Uncertainty vibration-K: 1.8 m/s²
- Vibration: 3.6 m/s²
- Angle Type: Straight
- Air consumption at load: 15 l/s
- Air inlet thread size (in): 1/4
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 13 mm
- Collet max capacity: 1/4 (6.35mm)
- Collet/Collet holder/Collet nut type: Erickson serie 200 type
- Exhaust: Front
- Governor type: NA
- Main Material type: Steel
- Rotative inlet: No
- Spindle lock: No
- Starting system: Safety lever
| Inner Qty: | 1 |
