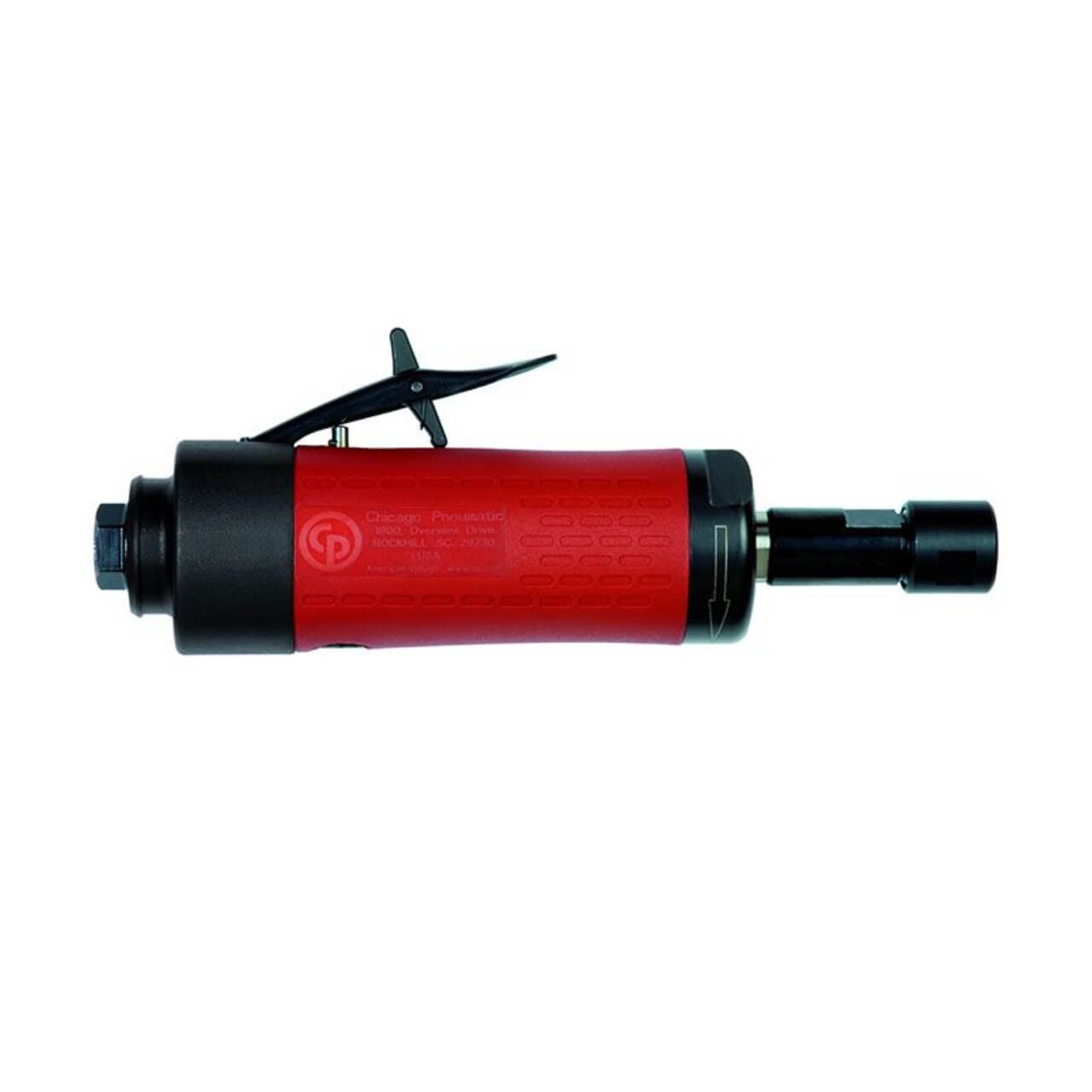

The CP3000 Series - Die Grinders, with a collet capacity of 1/4' (6.35 mm), are defined by 12 models ranging from 0.4 hp (300 W) to 0.7 hp (500 W). All tools are fitted with a safety lever and, depending on the configuration, benefit from a front or rear exhaust. Use with either carbide burrs or mounted grinding stones, available separately.
SPECIFICATIONS:
- Max power: 400 W
- Free Speed: 15000 rpm
- Air consumption at free speed: 12 l/s
- Air consumption at load: 10 l/s
- Air inlet thread size (in): 1/4
- Air inlet thread type: NPT
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 10 mm
- Sound Power: 91.3 dB(A)
- Sound Pressure: 80.3 dB(A)
- Vibration (m/s²): <2.5
- Angle Type: Straight
- Collet max capacity: 1/4 (6.4mm)
- Collet/Collet holder/Collet nut type: Erickson serie 200 type
- Exhaust: Rear
- Governor type: NA
- Main Material type: Aluminium, Composite over-sleeve
Rotative inlet: No
- Spindle lock: No
- Starting system: Safety lever
- Length (L): 196 mm
Inner Qty: | 1 |
