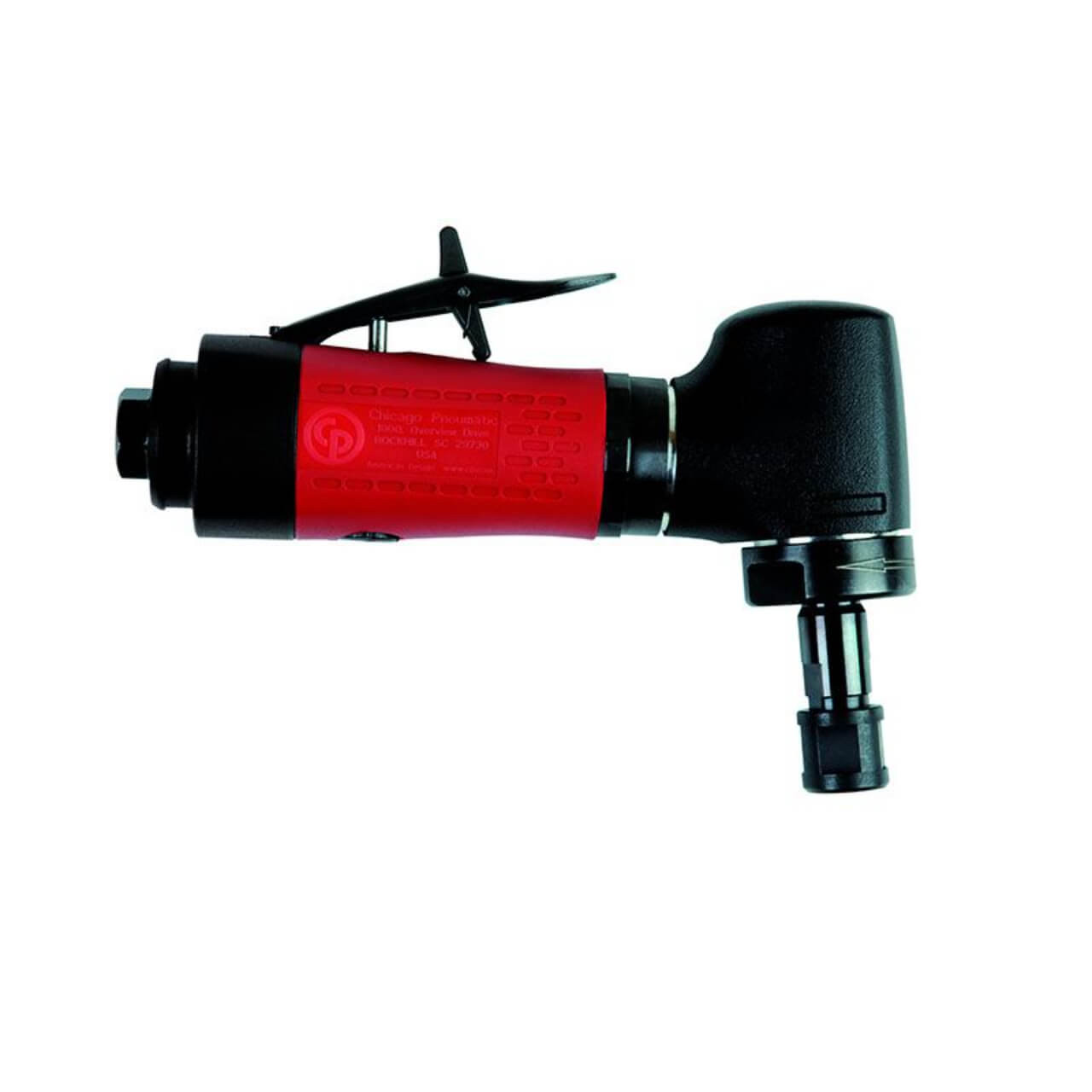

The CP3030 Series are pneumatic Die Grinders with a 1/4' (6.35 mm) collet capacity designed for optimum productivity in heavy applications such as deburring, die contouring, light chamfering. It features a powerful gearless design to increase the interval between maintenance. The range is defined by 11 models from 0.4 hp (300 W) to 0.7 hp (500 W). All tools are equipped with a safety lever and benefit from a rear exhaust.
SPECIFICATIONS:
- Collet max capacity: 1/4 (6.4mm)
- Collet/Collet holder/Collet nut type: Erickson serie 300 type
- Exhaust: Rear
- Governor type: NA
- Main Material type: Aluminium, Composite over-sleeve
- Rotative inlet: No
- Spindle lock: No
- Starting system: Safety lever
- Sound Power: 88.1 dB(A)
- Sound Pressure: 77.1 dB(A)
- Vibration (m/s²): <2.5
- Air consumption at load: 9 l/s
- Air inlet thread size (in): 1/4
- Air inlet thread type: NPT
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 10 mm
- Max power: 300 W
- Free Speed: 30000 rpm
- Air consumption at free speed: 10 l/s
- Length (L): 154 mm
| Inner Qty: | 1 |
