Cut 3 PLUS is cross cut and especially well-suited to machining of cast iron, steel, stainless steel (INOX), nickel-based alloys and titanium alloys. It is characterized by its high stock removal rate.
Tungsten carbide burrs for general applications are suitable for fine and coarse stock removal on the key materials used in industrial manufacturing. They provide a good stock removal rate and are not specific to a particular material.

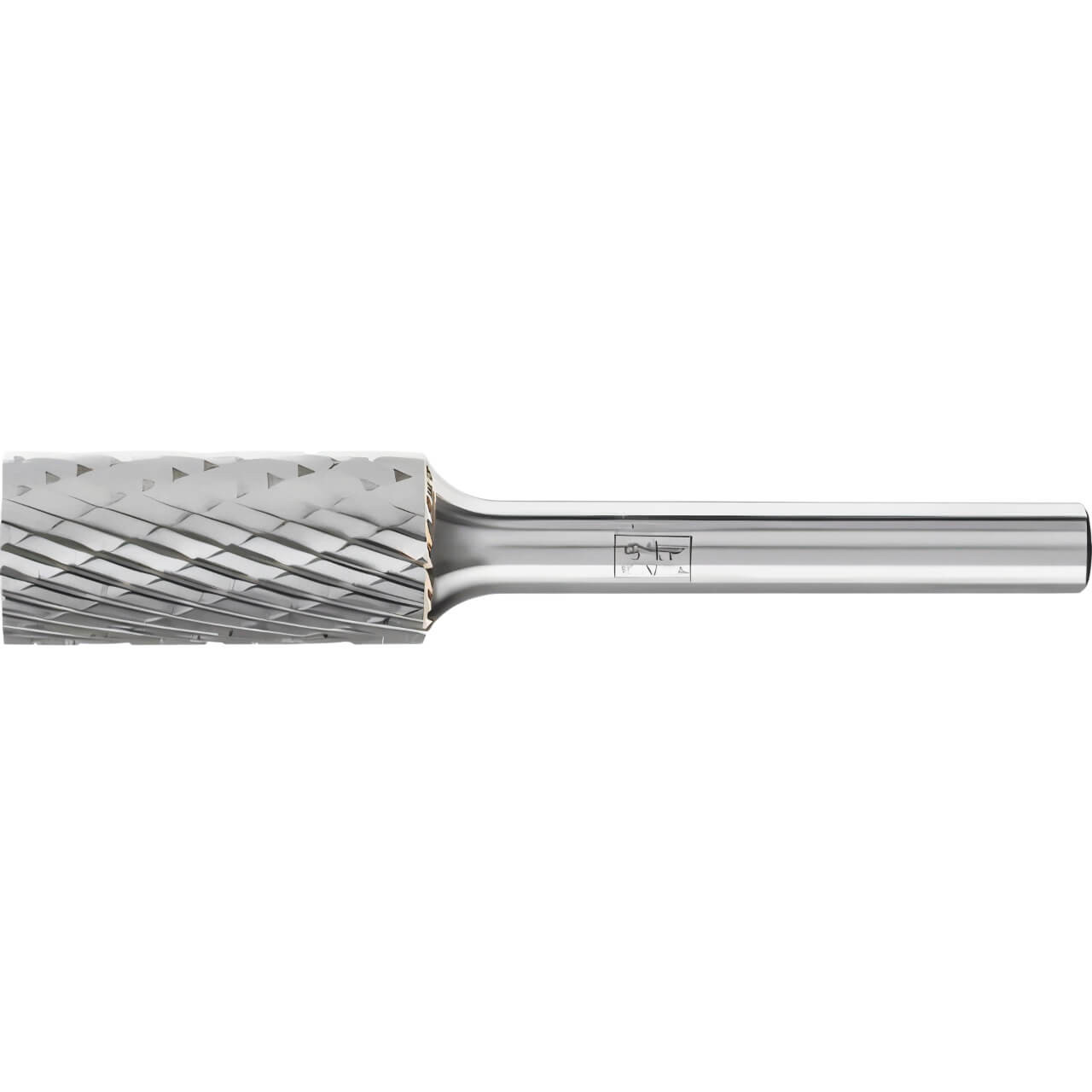

Cylindrical burr according to DIN 8032 with cut conforming to DIN 8033.
FEATURES:
- Good stock removal rate through optimum matching of tungsten carbide, geometry, cut and available coating.
- Long tool life.
- The highly accurate concentricity enables impactfree working without creating chatter marks. This considerably reduces wear on the tool and tool drive.
- High surface quality.
SPECIFICATIONS:
- Cut: 3 PLUS
- Dia. external: 12 mm
- Dia. shank: 6 mm
- Length, cut: 25 mm
- Length,total: 65 mm
- RPM, grey cast iron, white cast iron: 12.000 - 16.000 RPM
- RPM, hardened, heat-treated steels over 1,200 N/mm²: 7.000 - 9.000 RPM
- RPM, high-temperature-resistant materials:7.000 - 12.000 RPM
- RPM, rust and acid-resistant steels: 7.000 - 8.000 RPM
- RPM, steels up to 1,200 N/mm²: 12.000 - 16.000 RPM
- Packaging unit: 1 piece
| Inner Qty: | 1 |
