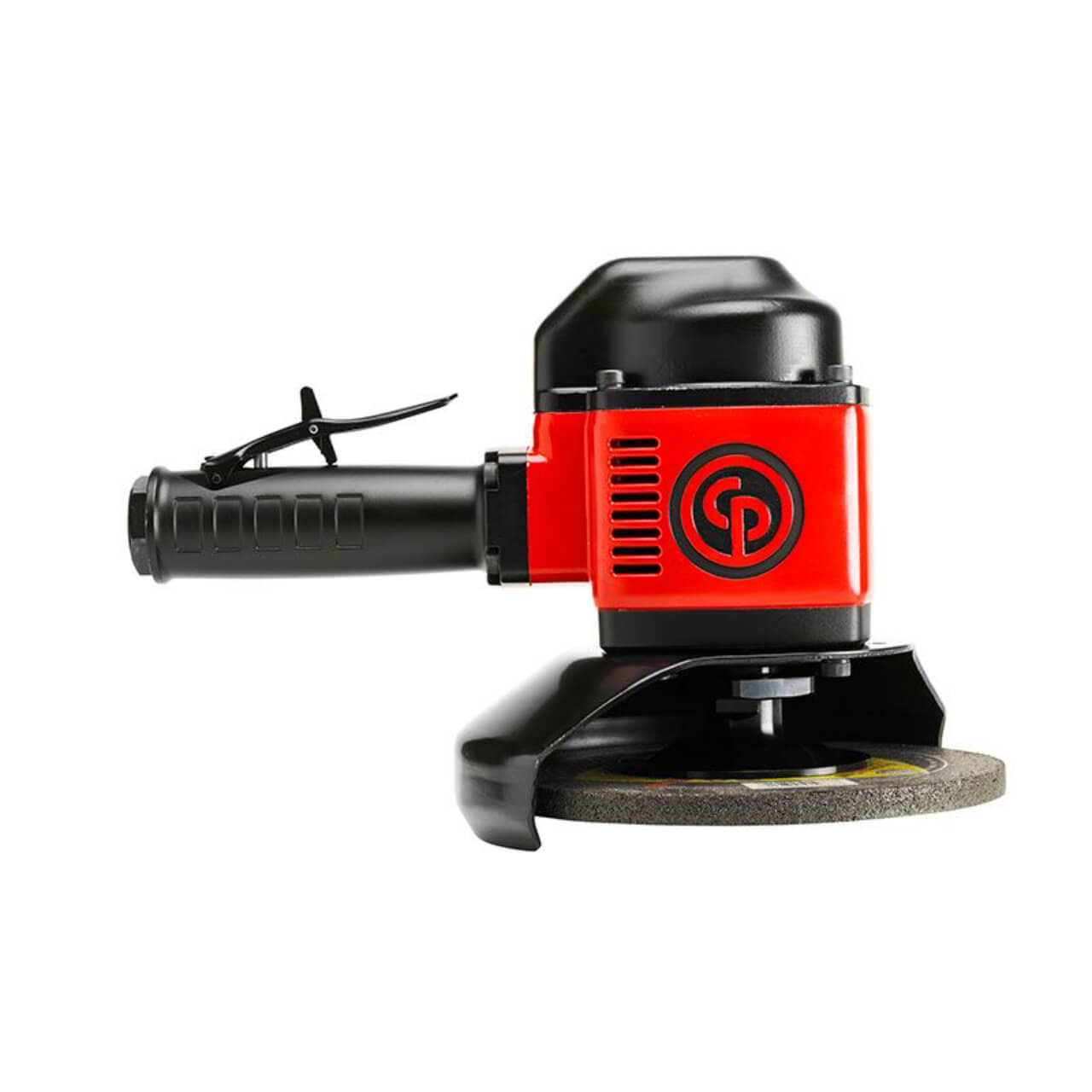

The CP3330 vertical grinder is ideal for heavy grinding and cutting applications. Highly robust and durable with integrated over speed shut-off device, it features a powerful governed pneumatic motor and free speed from 6,000 to 8,500 rpm, a streamlined safety lever, and very resistant protective guard for optimal operator safety. All models are 5/8″-11 UNS male spindle type. Available in 3 models: CP3330-SALAVEL for ANSI market and CP3330 SALAVET, CP3330-SALAVADE for CE market.
SPECIFICATIONS:
- Length (L): 250 mm
- Side to Center: 50 mm
- Max power: 2800 W
- Free Speed: 8500 rpm
- Air consumption at free speed: 17 l/s
- Overspeed shut-off: Yes
- Air consumption at load: 39 l/s
- Air inlet thread size (in): 1/2
- Air inlet thread type: NPT
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.63 in
- Min hose diam (5 m hose length): 16 mm
- Sound Power: 102 dB(A)
- Sound Pressure: 91 dB(A)
- Uncertainty vibration-K: 1.5 m/s²
- Vibration: 5.2 m/s²
- Autobalancer: No
- Exhaust: Side
- Main Material type: Aluminium
- Output Spindle Thread: 5/8-11 UNC
- Rotative inlet: No
- Spindle lock: No
- Starting system: Safety lever
- Swiveling guard: No
- Wheel/Disc diameter (in): 7
- Wheel/Disc diameter (mm): 180
Inner Qty: | 1 |
