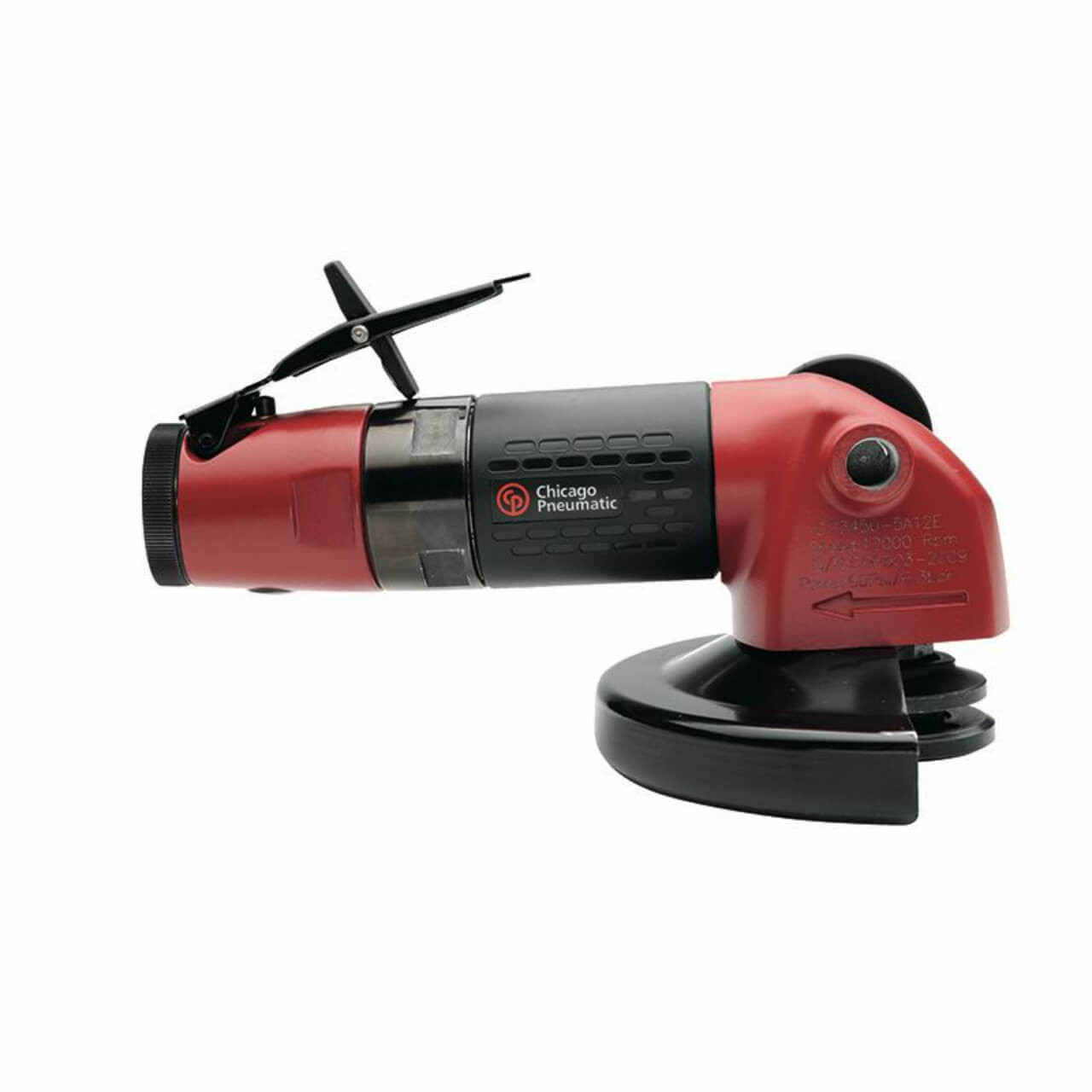

CP3450 angle Grinders Series have grinding wheel capacities from 4' (100 mm) to 5' (125 mm) with a powerful motor 1.1 hp (810 W) and a free speed up to 12,000 rpm. Its low-profile angle head design is perfect for surface preparation in any type of space. A constant lubrication bevel gear design ensures high durability. The CP3450 angle grinder Series offers 5 models with 3-wheel capacities and 3 spindle thread size choices (M14, 3/8-24' and 5/8-11'). The CP3450-12CR4 with rotative throttle is not for CE/NA Market.
SPECIFICATIONS:
- Length (L): 231 mm
- Side to Center: 50 mm
- Max power: 810 W
- Free Speed: 12000 rpm
- Air consumption at free speed: 18 l/s
- Overspeed shut-off: Yes
- Air consumption at load: 17 l/s
- Air inlet thread size (in): 3/8
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 13 mm
- Sound Power: 106 dB(A)
- Sound Pressure: 95 dB(A)
- Uncertainty vibration-K: 2.9 m/s²
- Vibration: 8.1 m/s²
- Autobalancer: No
- Guard max rotation: 0 °
- Guard positions: 1
- Main Material type: Aluminium, Composite over-sleeve
- Output Spindle Thread: M14x2
- Rotative inlet: Screws
- Spindle lock: No
- Starting system: Safety lever
- Swiveling guard: No
- Wheel/Disc diameter (in): 5
- Wheel/Disc diameter (mm): 125
Inner Qty: | 1 |
