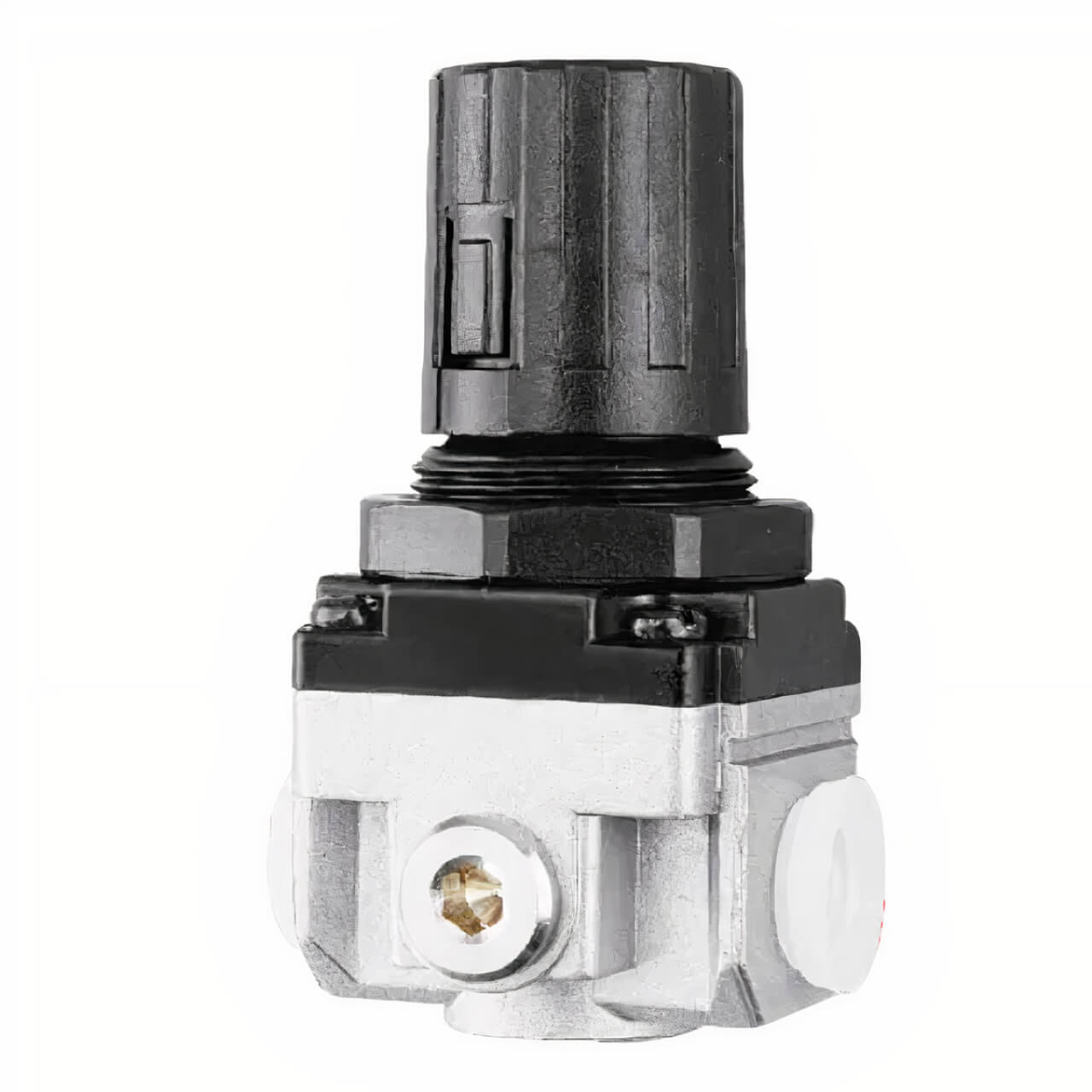

FEATURES:
- Non raising ''Press to Lock'' adjusting knob for locking at any set pressure.
- Diaphragm operated, relieving type mechanism with pressure compensated by balanced poppet. These can be installed in any position & need not be vertically mounted.
- 220 psi maximum pressure.
- 0° - 60° ambient temperature.
- Modular mounting and vertical mounting features.
- Includes gauge & bracket
SPECIFICATION:
- Code: R14624/GB
- Port Size: 3/8"
- Pressure Gauge Port Size: 1/8"
- Flow Rate: 88 CFM / 2500 LPM
- Height x Width: 135 x 55mm
- Classification: Intermediate
Inner Qty: | 1 |
