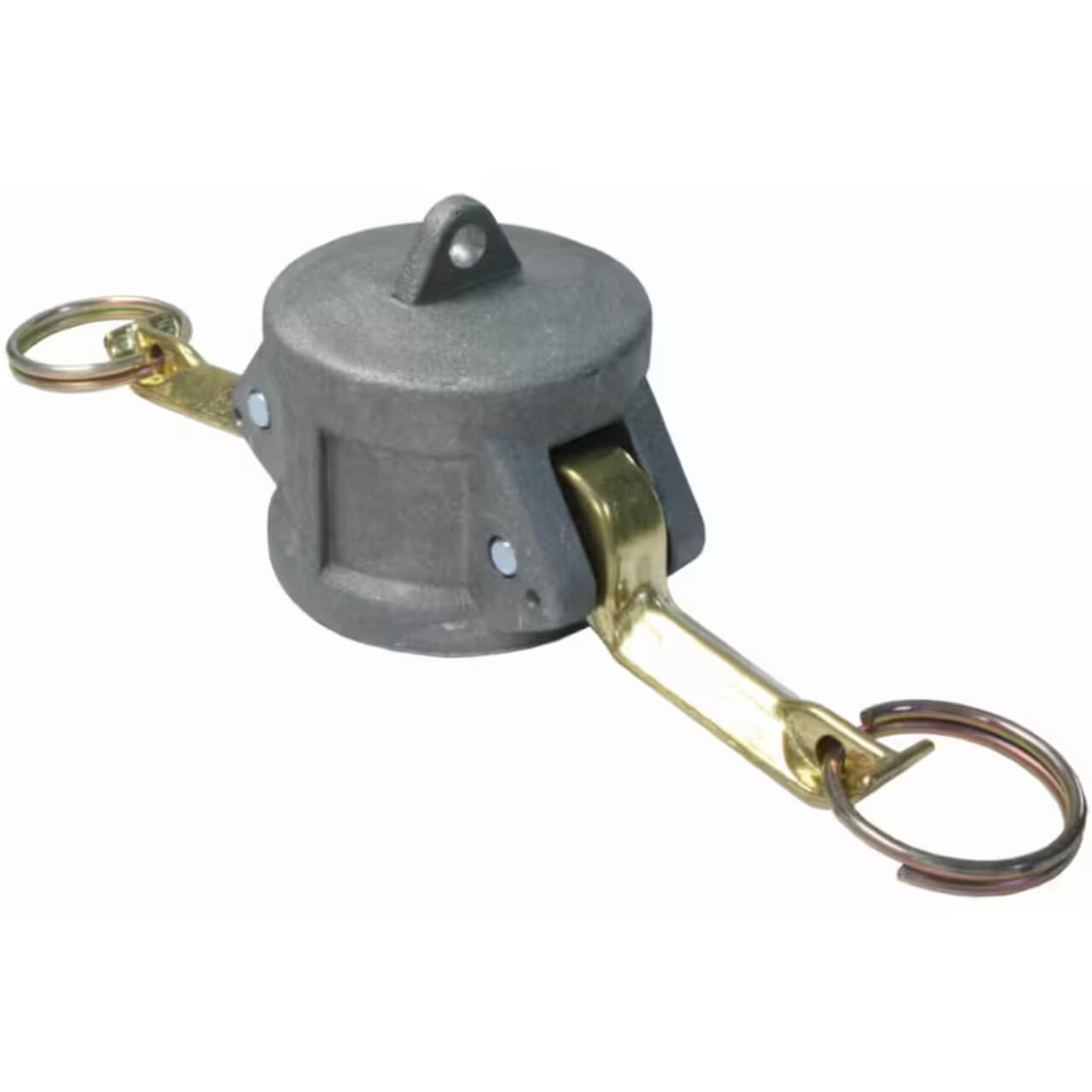

The Dixon Cam & Groove coupling is a reliable quick connect coupling for use on hose, pipe, tubing and tanks conveying a wide variety of liquids, dry bulk materials and vapors including cooling water, fuels, chemicals, cosmetics, food products, adhesives, dyes, pharmaceuticals, pellets and much more.
Features:
- Used for quick, easy and leak proof connections and disconnections of hose, pipe and tubing
- Finger rings to ensure easy opening of camlock levers
- Available in stainless steel grade CF8M (316 equivalent), aluminium, bronze, polypropylene and nyglass
- NBR (Buna-N) gasket installed (other gasket materials available on request)
- Brass handles and stainless steel pins
SPECIFICATIONS:
- Type: DC-Type
- Material: Aluminium Die Cast
- Size 1: 75 mm
- Connection 1: Cap
- Size: 75mm
| Inner Qty: | 1 |
