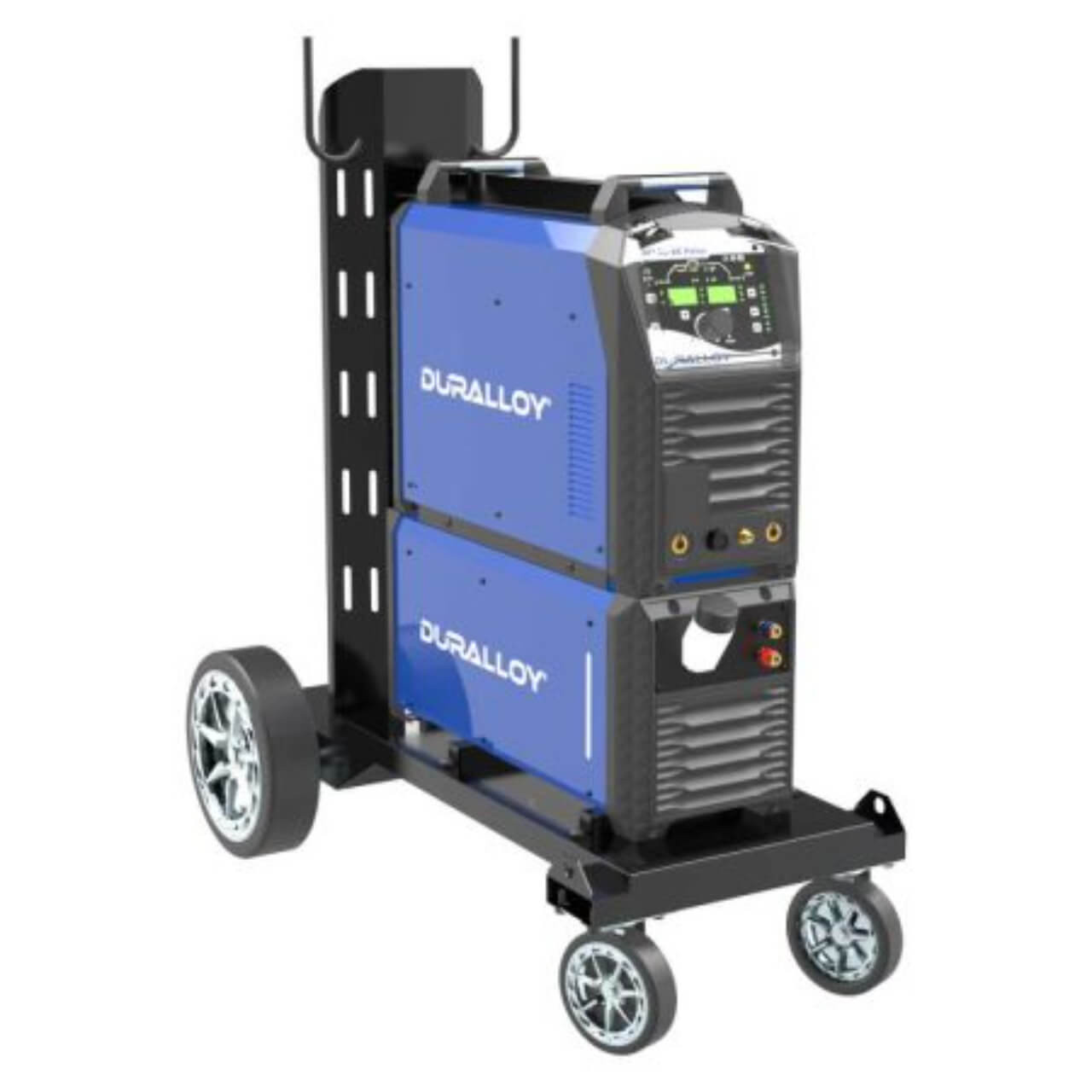

Duralloy 321 AC/DC Pulse TIG 415V Water Cooled Package

FEATURES:
- 4m Water Cooled Flexi Neck TIG Torch
- Gas Flow Meter Regulator
- AC/DC Technology
- Adjustable Pulse Parameters with choice of 3 AC/DC waves + DC Output
- Adjustable Pre/Post Gas
- High duty cycle with IGBT module for industrial application
- Industrial Cable Connectors (35-50)
- Quick Connect Gas Fitting
- Adjustable Frequency 50 - 250 Hz
- Protective Front Fascia cover
- 32 Amp Primary Plug fitted
- P23 Rating
- *Integrated Industrial Trolley with Water Cooler

SPECIFICATIONS:
- Power Supply: 415V 3-Phase
- Frequency: 50/60Hz
- Welding Current: 10A - 320A
- Down Slope/Up Slope: 0 - 10 seconds
- Pre/Post Flow: 0 - 2 / 0 - 10 seconds
- Pulse Frequency: 0.5 - 200 HZ
- AC Frequency: 50 - 250 Hz
- Pulse Width Range: 5 - 95%
- Clearance Effect (AC TIG): 15 - 50
- Efficiency: > 85%
- Net Weight: 26kg
- Dimensions: 550mm x 240mm x 445mm
- Protection Class: IP23
- Insulation Class: H
- Cooling: Auto Fan

APPLICATIONS:
- Heavy Fabrication
- Aluminium
- General Fabrication
- Pipe &; Tube industry
- On-site Fabrication
- Maintenance
