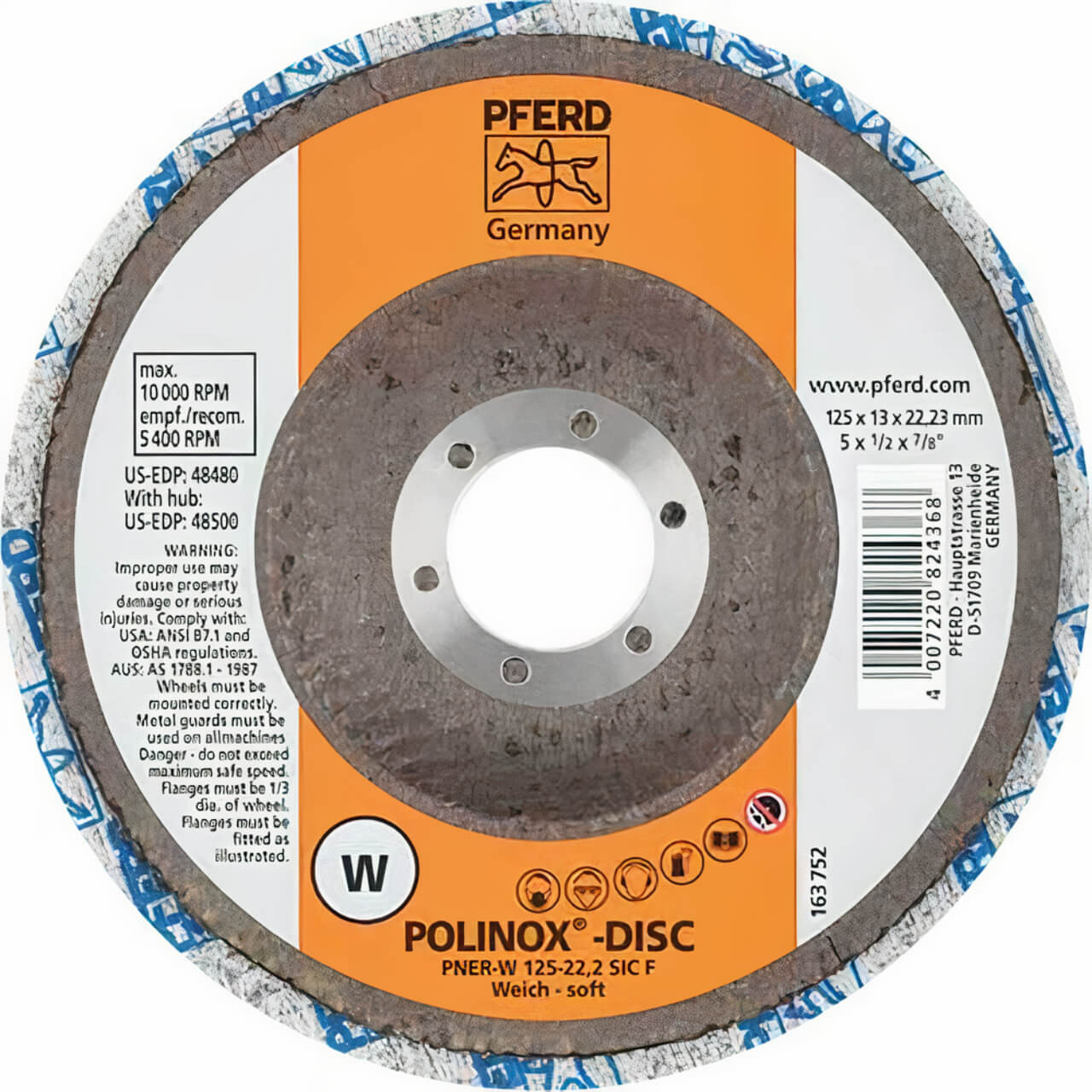

SPECIFICATIONS:
- Centre Hole Diameter: 22.23 mm
- Disc Size: 125 x 22 mm
- Operational Speed: 5400 RPM
- Maximum Speed: 10000 RPM
- Type: Grinding Wheel
- Wheel Type: PNER
- Grade: Medium Hard
RECOMMENDATIONS FOR USE:
- When working on materials with poor heat conductivity, e.g. titanium and stainless steel, significantly reduce the cutting speed

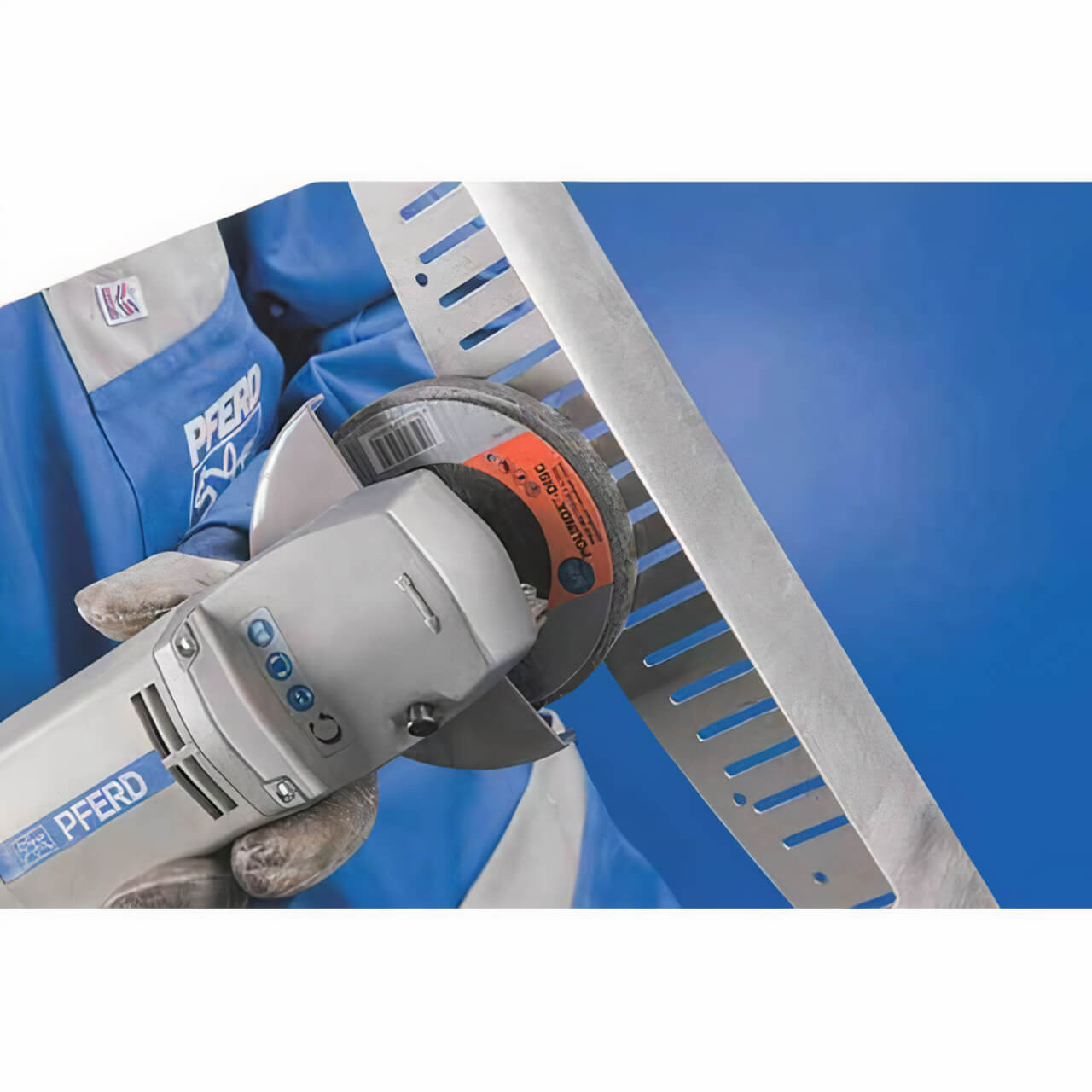

- Flexible shafts, electric and air-powered straight grinders as well as angle grinders and fillet weld grinders can be used as tool drives
- Designed for use on straight grinders and flexible shaft drives. Particularly suitable for work on small surfaces of stainless steel (INOX) and titanium alloy components.
- Unmounted grinding wheels with diameter 150 mm can also be used on grinding blocks, for reworking surgical instruments for example.
- POLINOX unitized discs achieve their best performance at a recommended cutting speed of 35 m/s
MATERIALS THAT CAN BE WORKED:
- Aluminium
- Cobalt-based alloys
- Other non-ferrous metals
- High-temperature-resistant materials
- Nickel-based alloys (e. g. Inconell and Hasteloy)
- Bronze
- Hard non-ferrous metal
- Titanium
- Titanium alloys
- Copper
- Soft non-ferrous metal
- Brass
- Zinc
- Stainless steel (INOX)
- Thermoplastics
- Fibre-reinforced duroplastics (GRP, CRP)
- Hardened, heat-treated steels over 1,200 N/mm2 (over 38 HRC)
- Steel materials with a hardness over 54 HRC
- Steel, cast steel
- Steels up to 1,200 N/mmŒ_ (<; 38 HRC)
- Cast steel
APPLICATIONS:
- Roughening
- Deburring
- Surface work
- Cleaning
- Structuring (matt finishing, brush matting and satin finishing)
- Fine grinding in multiple steps
