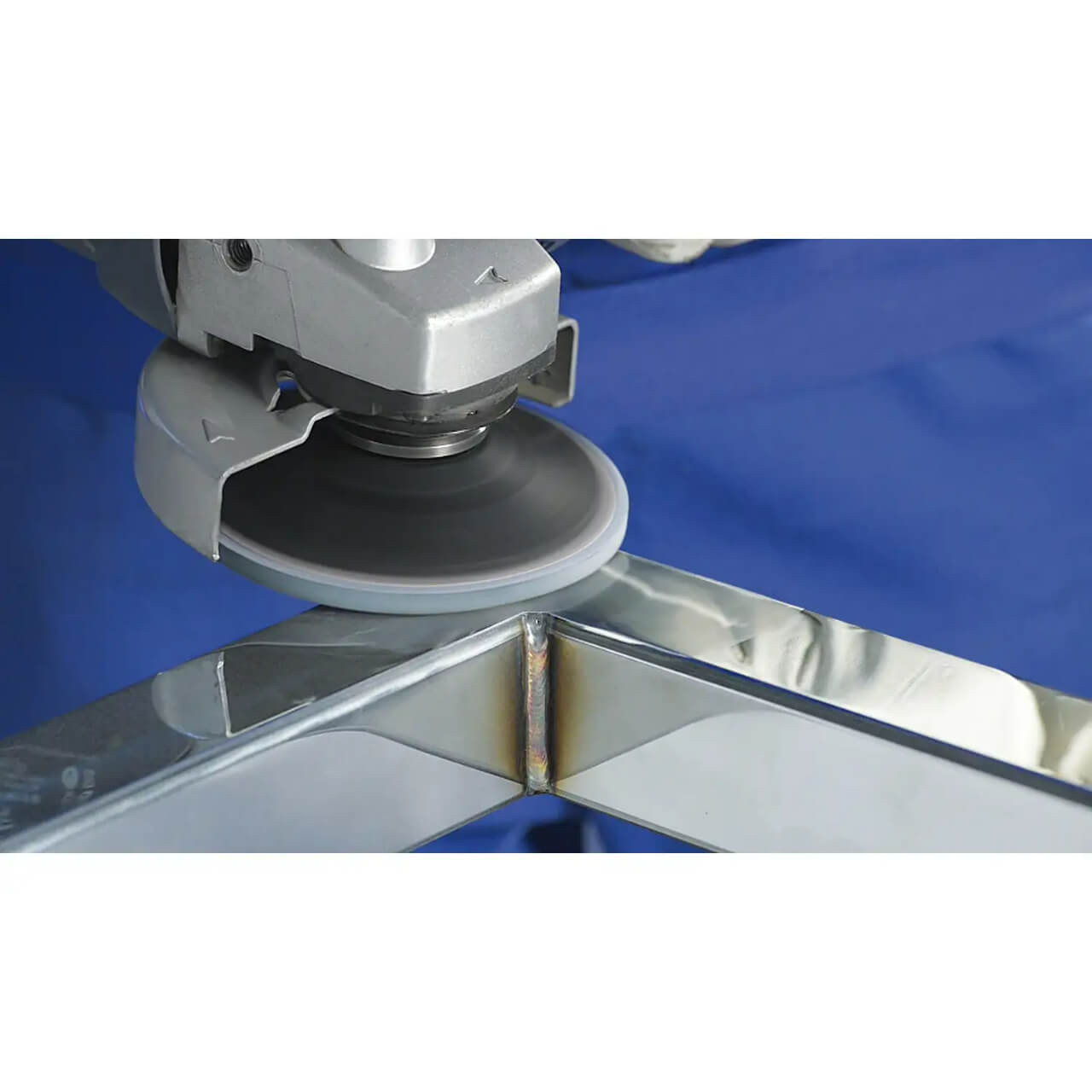

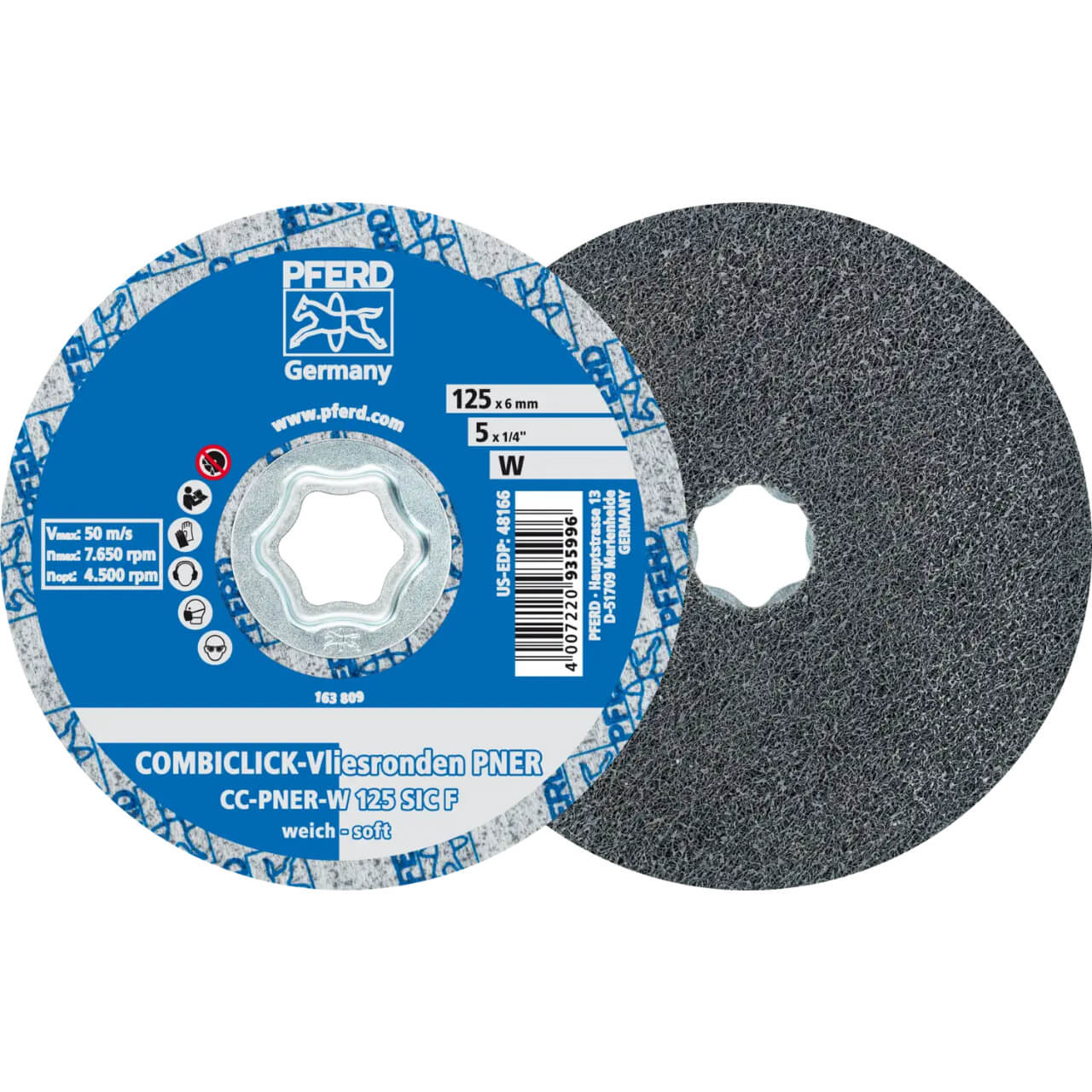

The COMBICLICK system consists of a specially developed backing pad and a rugged mounting system at the back of the tool. With the backing pad, COMBICLICK tools can be used on commercially available angle grinders. The unique geometry of the cooling slots ensures high air throughput, which in turn considerably reduces the thermal load on the abrasive material and the workpiece. Compared with conventional tools, the quick-mounting system, robust holder, secure tool-locking feature and integrated cooling system together achieve a workpiece temperature that is 30 % lower, a 25 % higher stock removal rate, a 30 % longer tool life, and better utilization of the abrasive material. This design is ideal for achieving a very fine, uniform surface finish which, depending on requirements, is a sufficient preparation for high-gloss polishing. It is especially suitable for work on larger surfaces on components made of stainless steel (INOX).
FEATURES:
- The innovative quick-mounting system ensures convenient handling and cool grinding.
- Extremely quick and easy tool changes, which reduces process costs.
- Using COMBICLICK helps to avoid scratches caused by protruding clamping pieces, and exploits the abrasive material that is available.
- High edge strength thanks to extreme durability.
- Can be profiled as desired, enabling optimal adjustment to the contour.
APPLICATIONS:
- Cleaning
- Deburring
- Roughening
- Step-by-step fine grinding
- Structuring (matt finishing, brush matting and satin finishing)
- Surface work
- Work on weld seams
SPECIFICATIONS:
- Abrasive: Silicon carbide SiC/C
- Dia. external: 125 mm
- Grit size: fine
- Max. RPM: 7650 RPM
- RPM, optimum: 4500 RPM
- Version: W (soft)
- Packaging unit: 5 pieces
RECOMMMENDATIONS FOR USE:
- Use COMBICLICK non-woven discs with COMBICLICK backing pads on speed-adjustable angle grinders.
- For the best results, use at a recommended cutting speed of 15-35 m/s. This provides an ideal compromise between stock removal rate, surface quality, thermal load on the workpiece and tool wear.
MATERIALS THAT CAN BE WORKED:
- Aluminium
- Brass
- Bronze
- Cast steel
- Cobalt-based alloys
- Copper
- Fibre-reinforced thermosetting plastics (GRP, CRP)
- Hardened, heat-treated steels over 1.200 N/mm² (<; 38 HRC)
- Nickel-based alloys (e.g. Inconell and Hastelloy)
- Stainless steel (INOX)
- Steel materials with a hardness >; 54 HRC
- Steels up to 1,200 N/mm² (<; 38 HRC)
- Thermoplastics
- Titanium
- Titanium alloys
